IBX-530B-270 Embedded System

Page 55

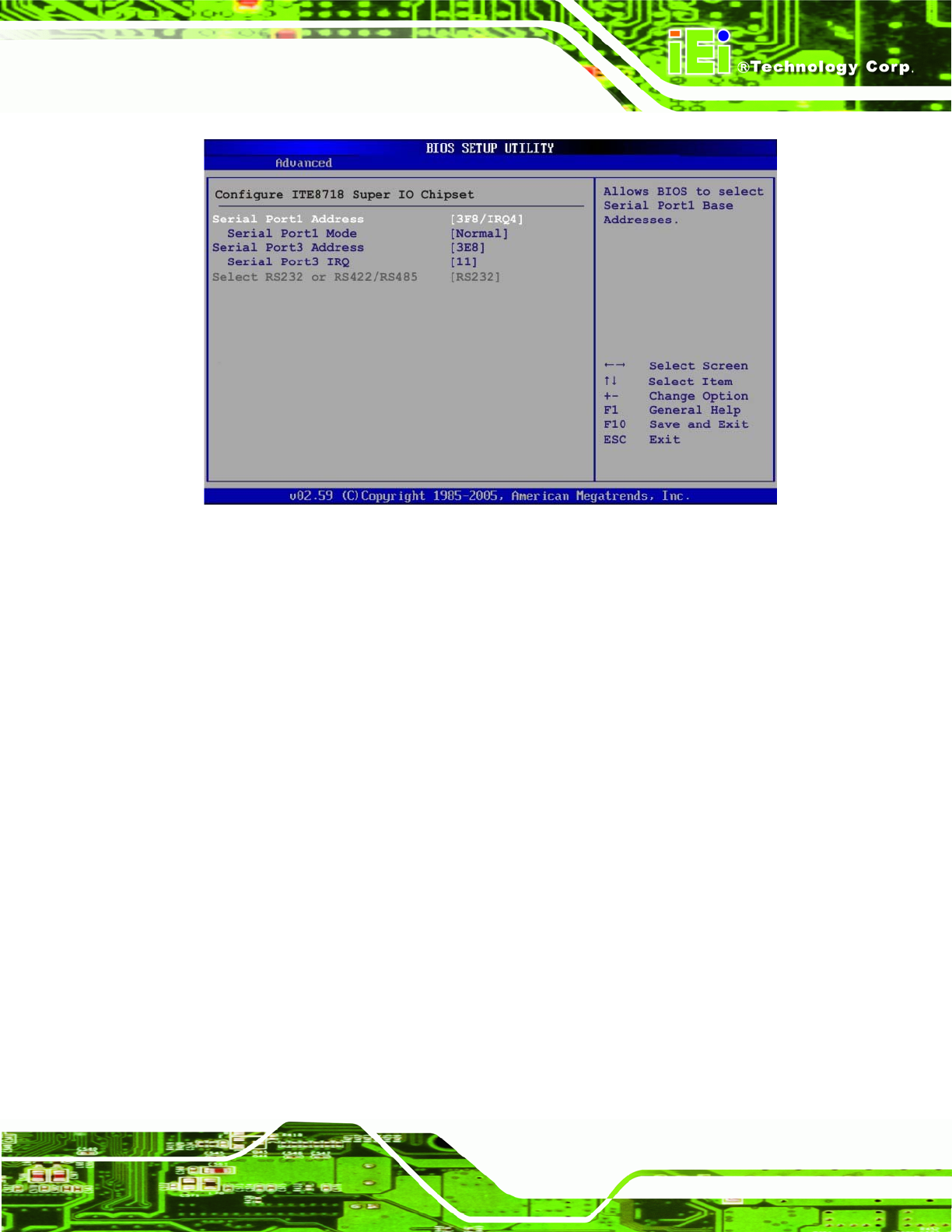

BIOS Menu 6: Super IO Configuration

 Serial Port1 Address [3F8/IRQ4]

Use the Serial Port1 Address option to select the Serial Port 1 base address.



Disabled

No base address is assigned to Serial Port 1



3F8/IRQ4 DEFAULT

Serial Port 1 I/O port address is 3F8 and the interrupt

address is IRQ4



2F8/IRQ3

Serial Port 1 I/O port address is 2F8 and the interrupt

address is IRQ3



3E8/IRQ4

Serial Port 1 I/O port address is 3E8 and the interrupt

address is IRQ4



2E8/IRQ3

Serial Port 1 I/O port address is 2E8 and the interrupt

address is IRQ3

 Serial Port1 Mode [Normal]

Use the Serial Port1 Mode option to select the transmitting and receiving mode for the

first serial port.
