The rear roof channel assembly at-

taches to the permanent structure and

supports the unit.

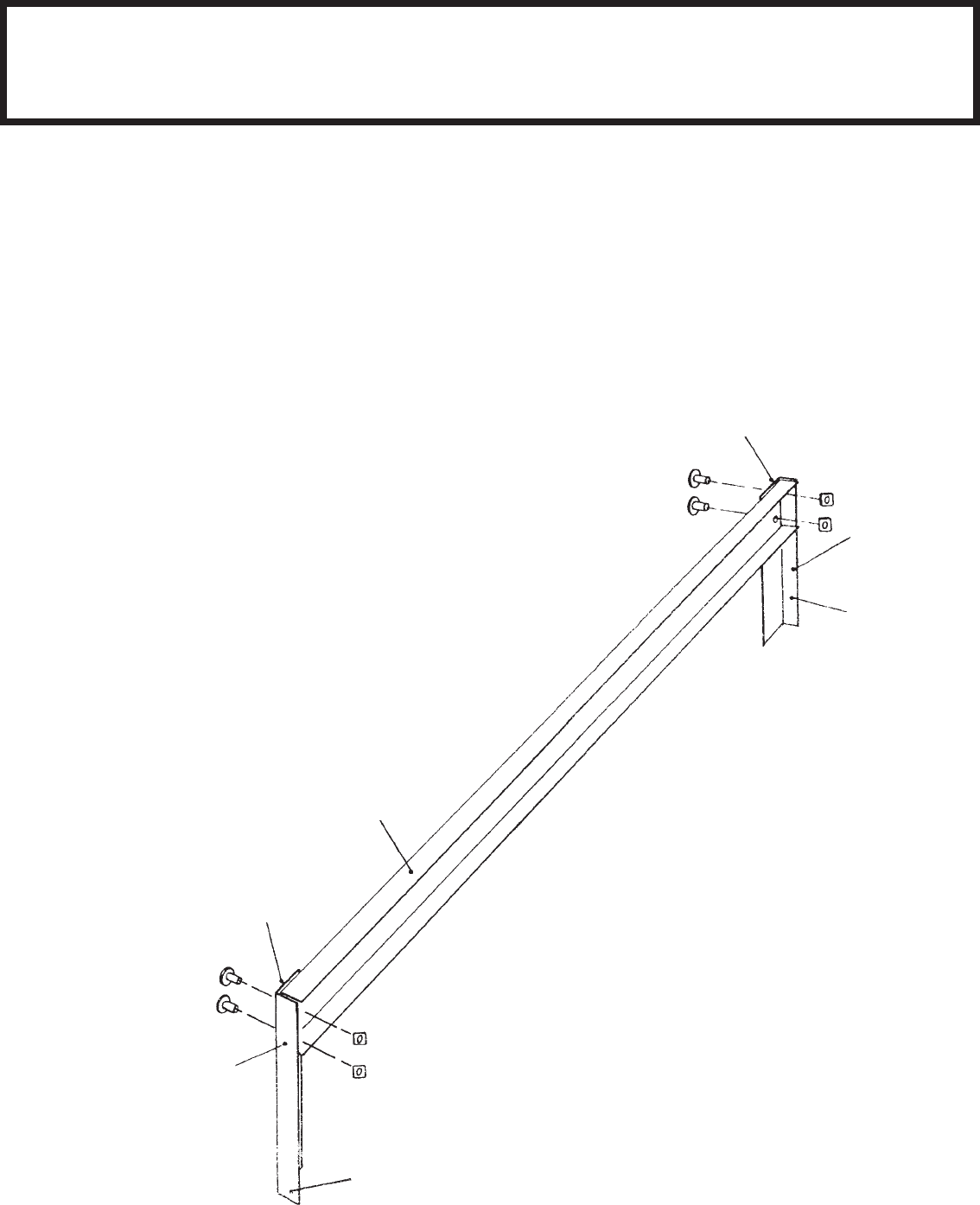

1 Fasten the channel braces to the

end of the rear roof channel using

four #10-32x7/16" (11 mm) bolts and

square nuts.

Hint: Position the short and long

flange as shown in the diagram.

Step 1

BO10

● Parts Needed For ●

Rear Roof Channel

Pre-Assembly

10

●●

●●

● 9734 Rear Roof Channel (one)

●●

●●

● 9665 Channel Brace (two)

Long Flange

Short Flange

9665

9665

Short Flange

Long Flange

9734
