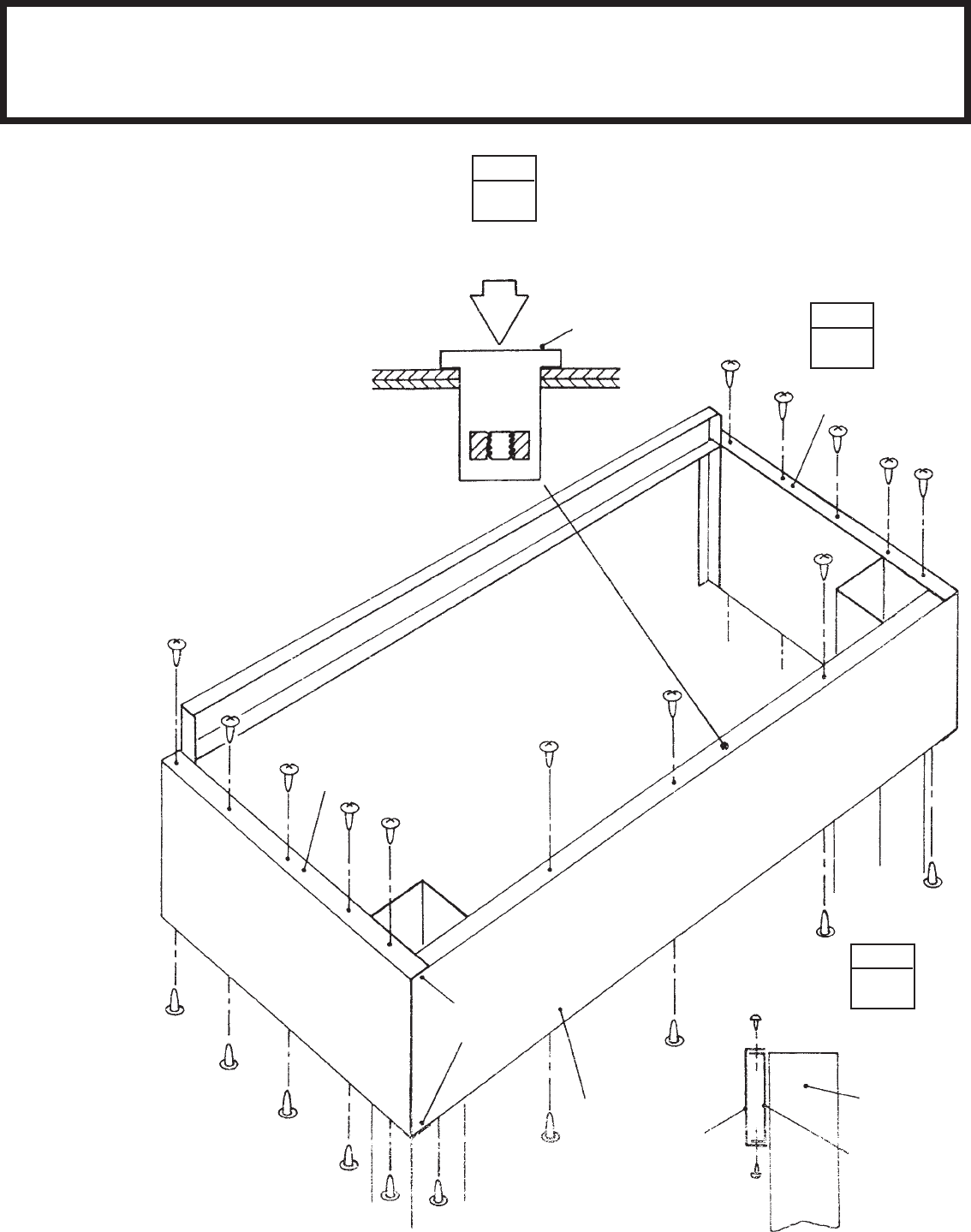

1 Place front facia over front roof

channel with largest amount of holes

on top. Fasten bottom flange with five

#10Ax 3/8" (10 mm) screws. Fasten

top flange using three #10 screws

where shown.

2 Place right and left facia over end

roof channels. Fasten bottom flange

with five #10 screws. Fasten top

flange in the same manner.

3 Place a well-nut on top flange of

the front facia. Insert all the way into

pre-drilled hole until flange is firmly

against mounting surface. Continue

along length of the front facia piece.

Step 5

BO16

● Parts Needed For ●

Facia Assembly

16

●●

●●

● 9732 Front Facia (one)

● ●

● ●

● 9654 Right Facia (one)

● ●

● ●

● 9657 Left Facia (one)

Press firmly against mounting surface

#10-32 Well-Nut

9654

9732

Overlap

Facia

Post

Roof Channel

9657

STEP

2

STEP

3

STEP

1
