The anchor brackets in this step will

be used later to anchor the unit to the

base/foundation.

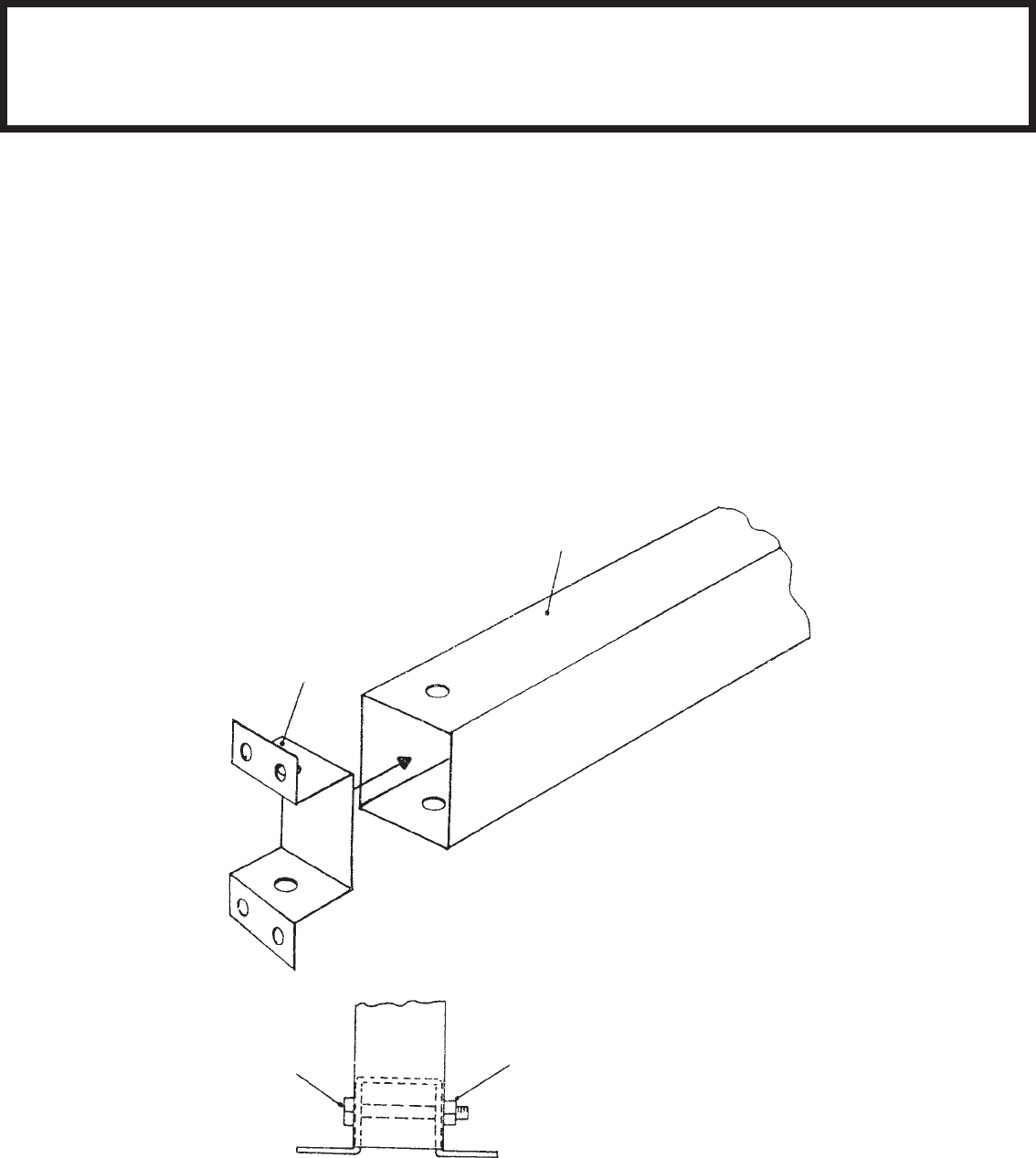

1 Position an anchor bracket inside

the left & right posts, align holes, and

fasten using a 3/8-16 x 3 1/4" (83 mm)

hex head bolt and hex nut. Make two

assemblies. Do not overtighten.

Step 2

BO11

11

● Parts Needed For ●

Post

Pre-Assemblies

3/8-16 Hex Nut

●●

●●

● 9661 Left Post (one)

● ●

● ●

● 9660 Right Post (one)

●●

●●

● 9652 Anchor Bracket (two)

9661 or 9660

9652

3/8-16x3 1/4" (83 mm)

Hex Head Bolt
