SR84 / SR85, CH33

(E) 5

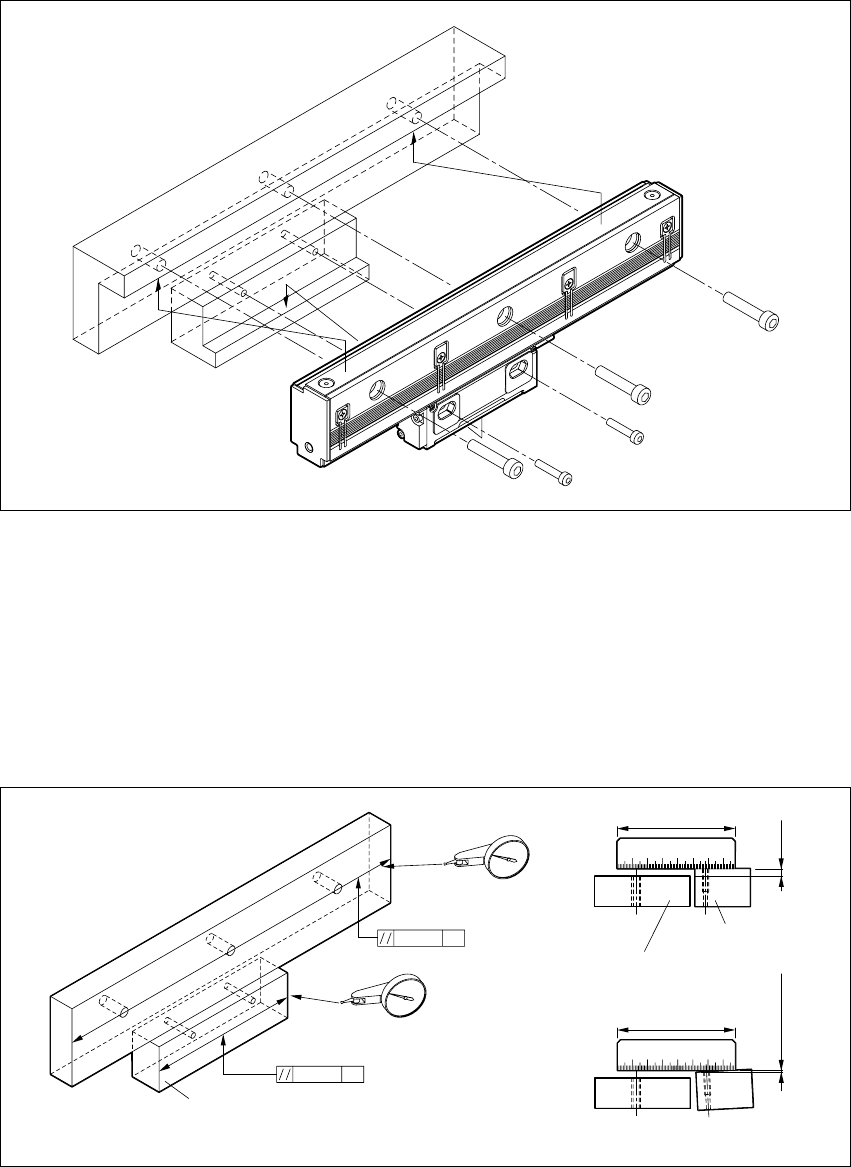

3. Bring the scale into contact with the stop surfaces and install.

±0.3

±0.2

±0.3

0.05

Slider bracket

Scale bracket

0.05 or less

Fig. 2-7

Example 2: Installation when a stop surface of the scale and slider is not made with the

bracket

1. Adjust the parallelism of the scale bracket and slider bracket with respect to the machine guide, and then

secure in place. Adjust the height and parallelism of the slider bracket with respect to the scale bracket,

and then secure in place.

Unit: mm

Fig. 2-8
