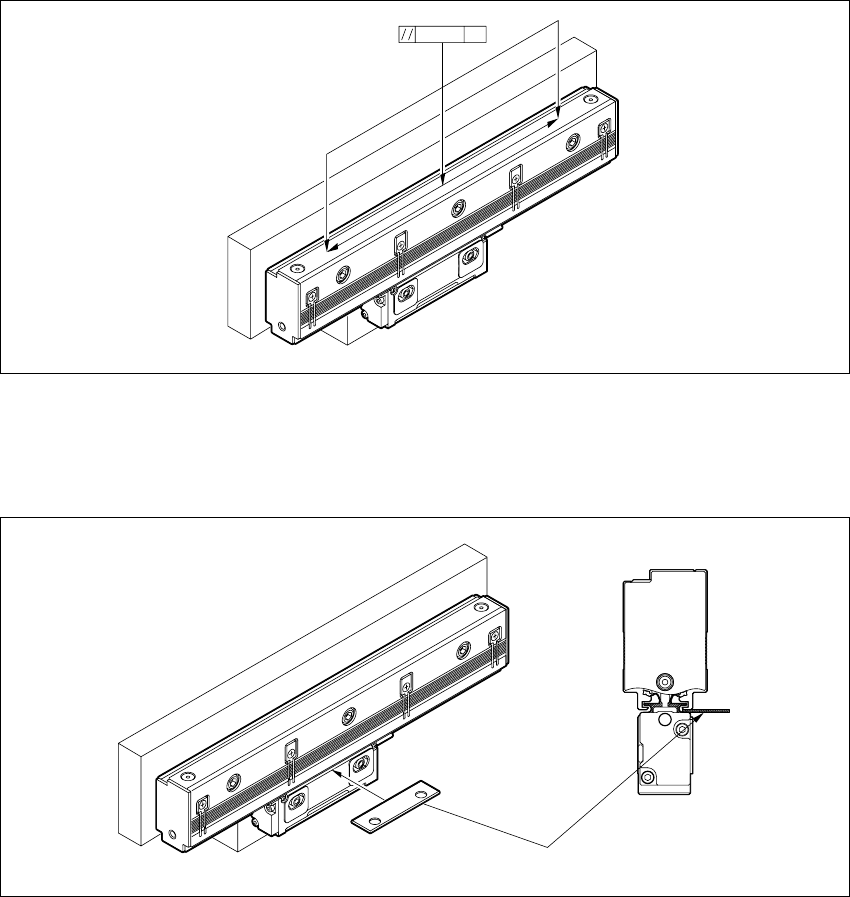

2. Adjust the parallelism with respect to the machine guide of the scale rear while measuring the scale rear

with a dial gauge. Tighten the set screws.

Measure near the installation hole positions at the scale unit rear.

spacer (t = 1.0 mm)

0.1

Unit: mm

Fig. 2-9

3. Insert the supplied spacer (t = 1.0 mm) in the space between the scale and slider, and then adjust the

slider position while bringing the slider into contact with the scale.

Fig. 2-10
