User’s Guide 8-9

Tray module (A4/Letter, 550 sheets)

Accessories

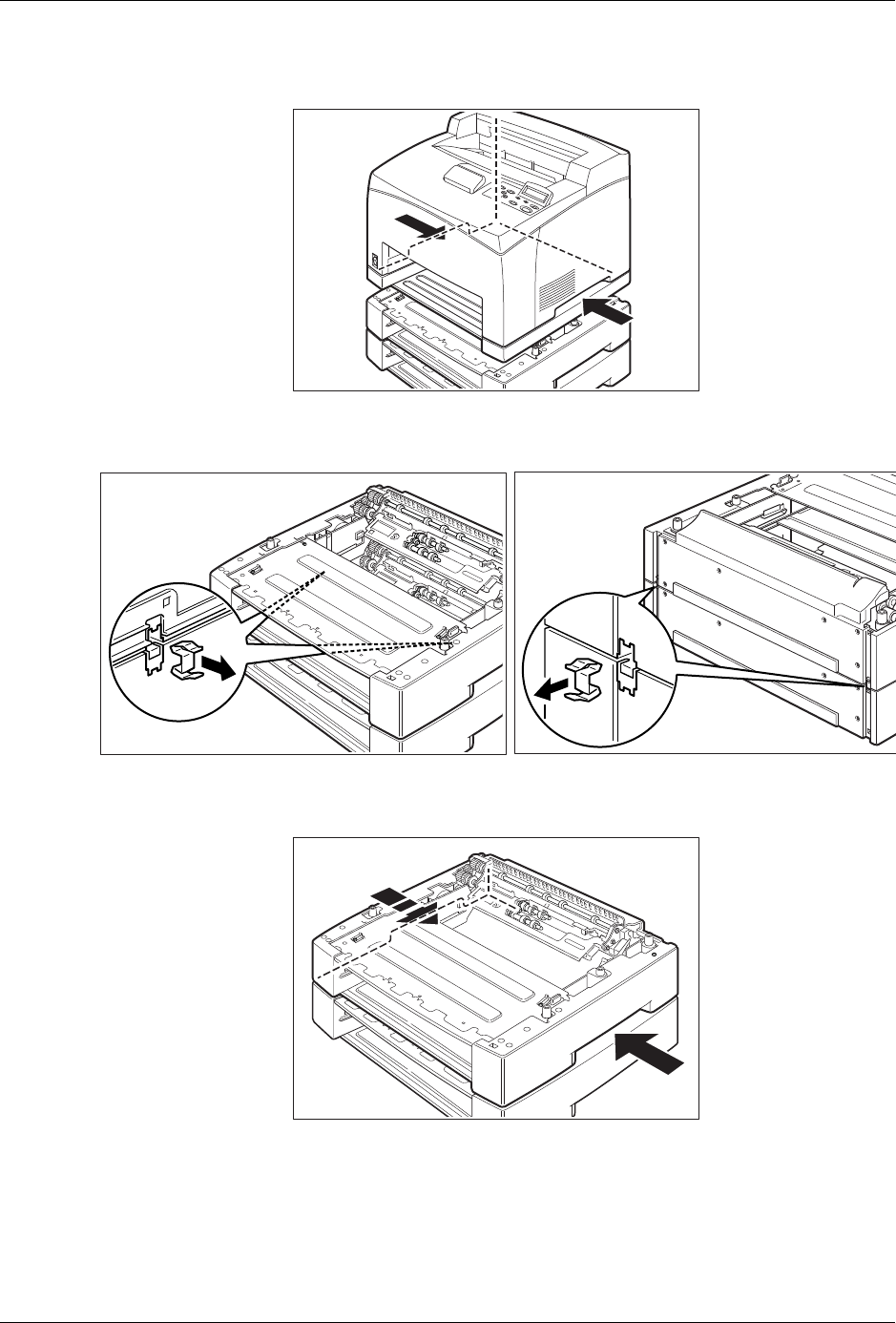

6. Lift up the printer by holding the recessed areas as shown in the diagram and then remove

it from the tray modules.

7. Remove the fasteners found at the 2 locations inside the tray modules and at the 2

locations at the back of the tray modules.

8. Lift up the top tray module by holding the recessed areas as shown in the diagram and

then remove it from the bottom tray module.
