30

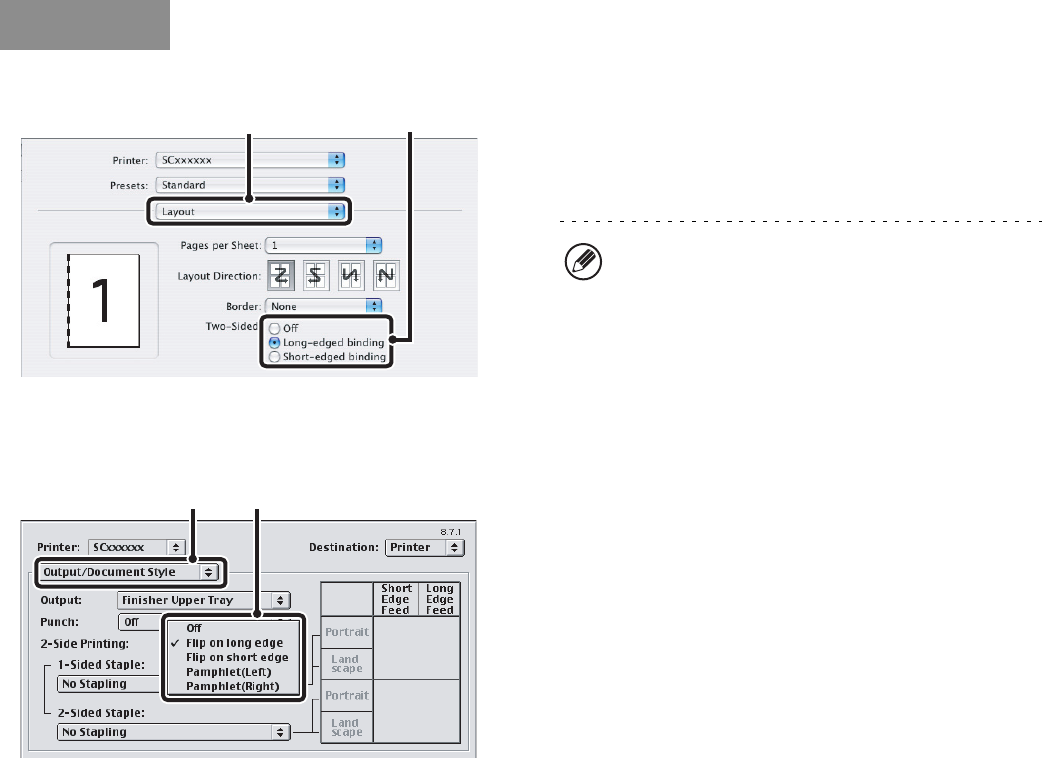

Mac OS X
(1) Select [Layout].
(2) Select [Long-edged binding] or
[Short-edged binding].
Mac OS 9
(1) Select [Output/Document Style].
(2) Select [Flip on long edge] or [Flip on short
edge].
Macintosh
(1)
(2)
• In Mac OS X v10.1.5, select the settings in [Duplex].
• In Mac OS X v10.2.8, select the settings in
[Advanced].
(1) (2)
