PUNCH MODULE
A punch module can be installed to punch holes in output. To install a punch module, a finisher or saddle stitch finisher
is required.
Discarding punch waste
Punch waste from punched holes is collected in the punch waste box.
Follow the steps below to discard the punch waste.

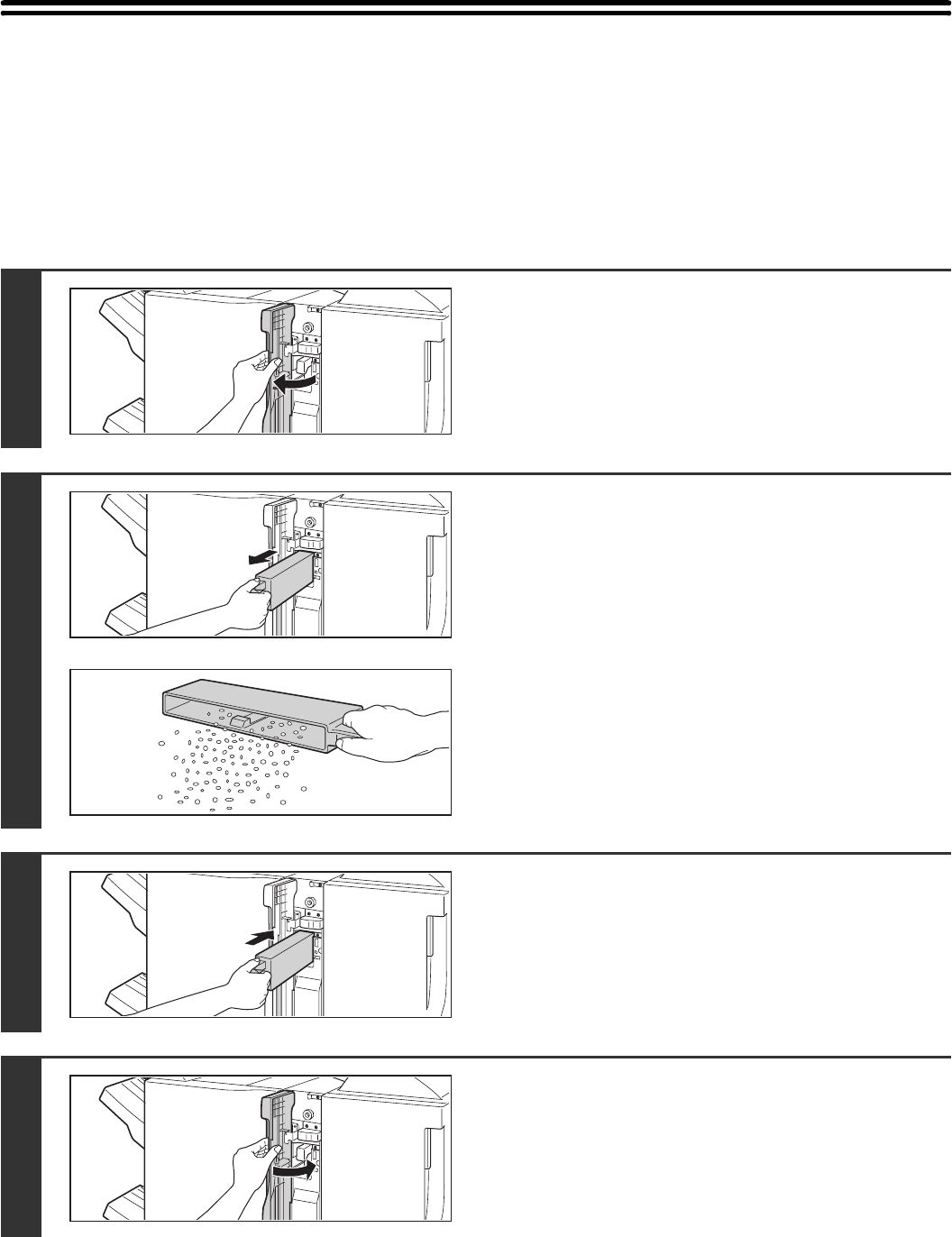

1
Open the front cover of the punch
module.
2
Pull out the punch waste box and
discard the punch waste.
Discard the punch waste in a plastic bag or other container,
taking care not to let the waste scatter.
3
Replace the punch waste box.
If the punch waste box is not replaced properly, printing will not
be possible using the punch function.
4
Close the cover of the punch module.
