Removing a staple jam from the saddle stitch unit
To remove a staple jam from the saddle stitch unit, remove the staple cartridge and then follow the steps below. To
remove the staple cartridge from the saddle stitch unit or replace the saddle stitch unit, see "Replacing the staple
cartridges in the saddle stitch unit" (page 53).

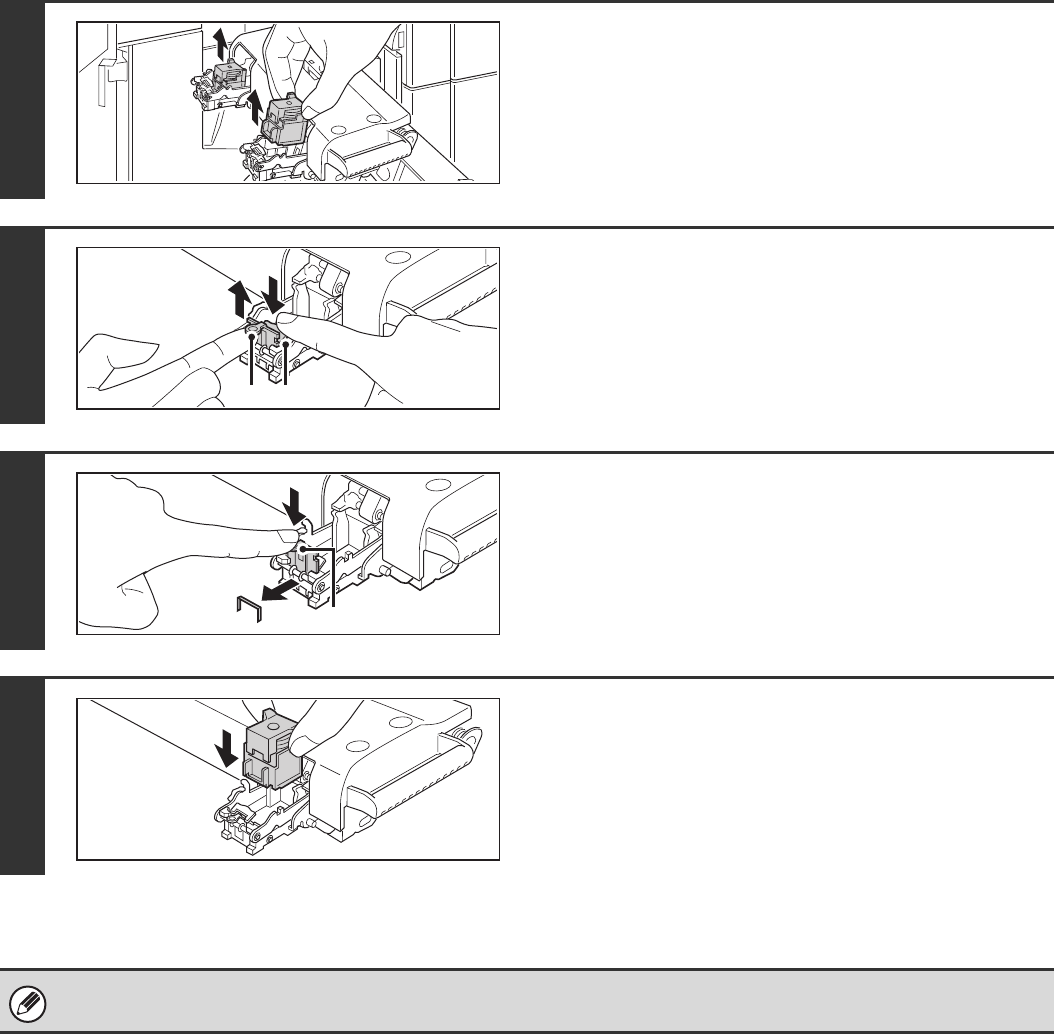

1
Remove the staple cartridge from the
staple unit.
2
Press (A) down and pull up knob (B).
3
Remove the jammed staples and then
return knob (B) to its original position.
4
Replace the staple cartridge.
Make a test print or copy using the saddle stitch function to verify that stapling takes place correctly.
(A)(B)
(B)
