AR-168N/168L DISASSEMBLY AND ASSEMBLY 8 - 13

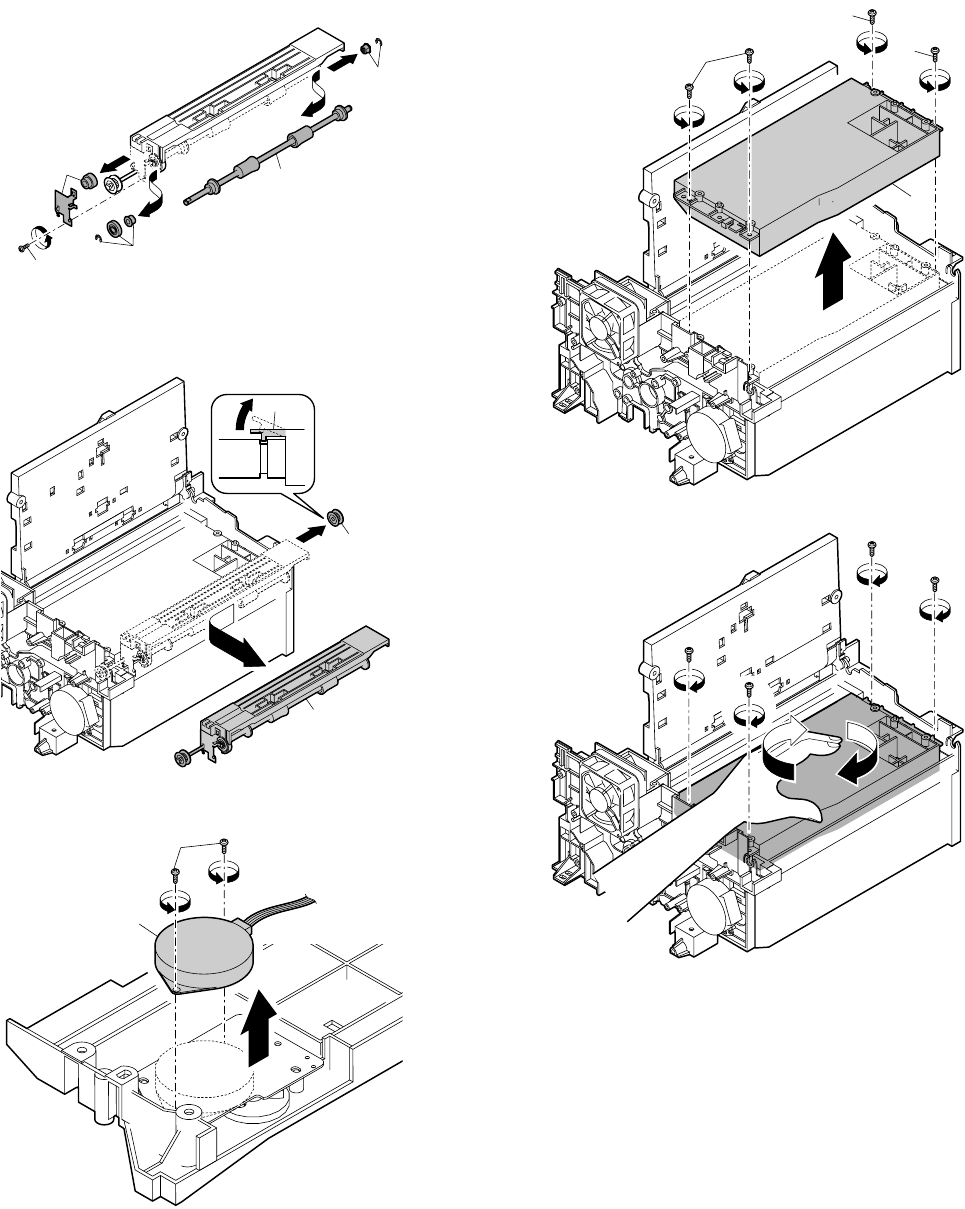

26) Disengage the pawl, and remove the pulley.

27) Shift and remove the shifter unit.

28) Remove the screw, and remove the grounding plate and the gear.

29) Remove the E-ring, the gear, and the bearing, and remove the

shifter roller.

30) Put the lower paper guide unit upside down, remove the two

screws, and remove the shifter motor.

31) Remove the four screws, and remove the LSU.

Note: When assembling, turn it to the right and attach.
