AR-168N/168L DISASSEMBLY AND ASSEMBLY 8 - 24

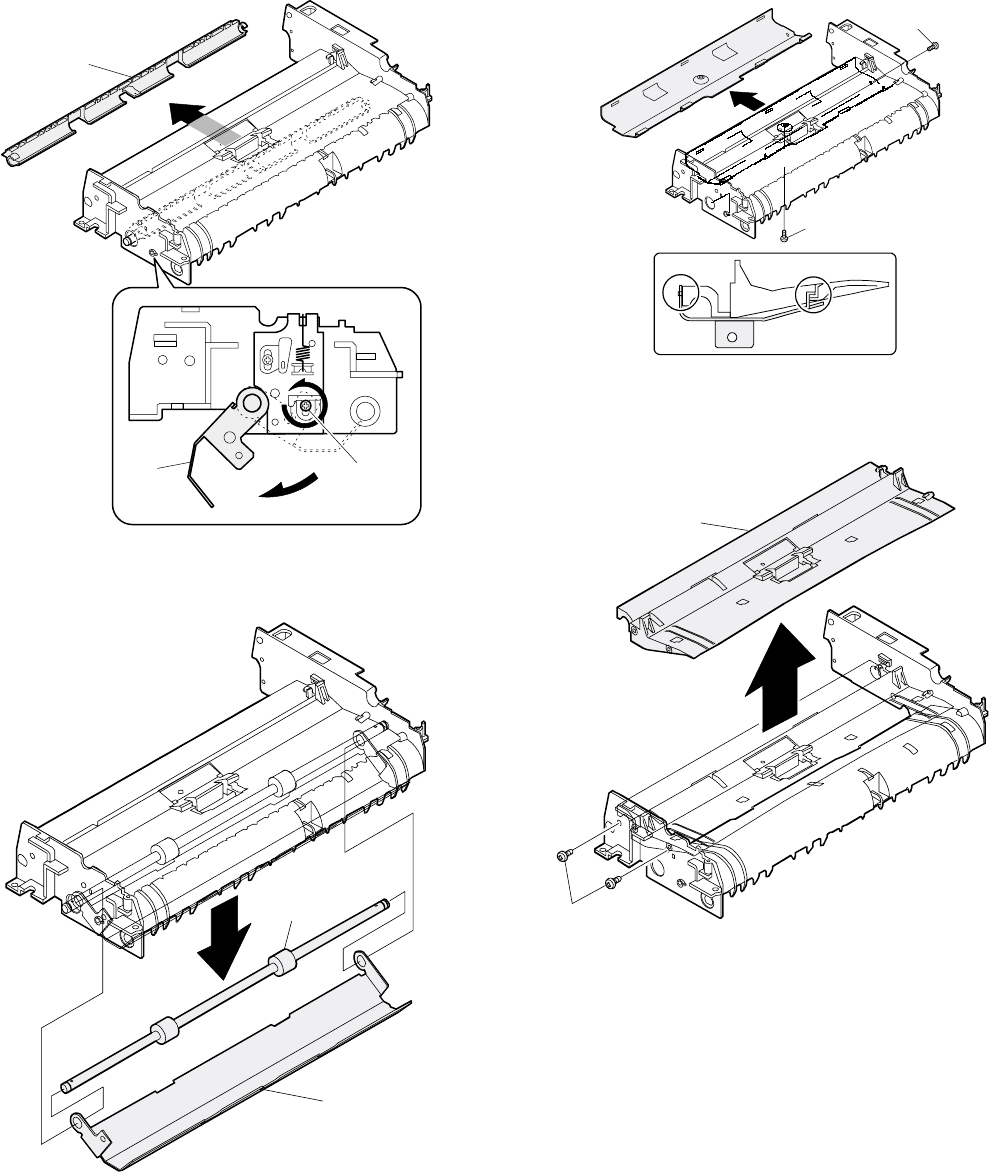

(2) Remove the parts.
1) Loosen the screw.
2) Open the paper exit paper guide.
3) Remove the parts.
(3) Remove the transport roller.
1) Remove the paper exit paper guide.
2) Remove the transport roller.
S. Paper exit roller
(1) Remove the parts.
1) Remove two screws.
2) Remove the parts.
(2) Remove the paper feed paper guide upper.
1) Remove two screws.
2) Remove the paper feed paper guide upper.
1
2
3
1
2
1
1
2
1
2
08_DISSASEMBLY.fm 24 ページ ２００５年１１月１８日 金曜日 午後５時３３分
