PG-A20X

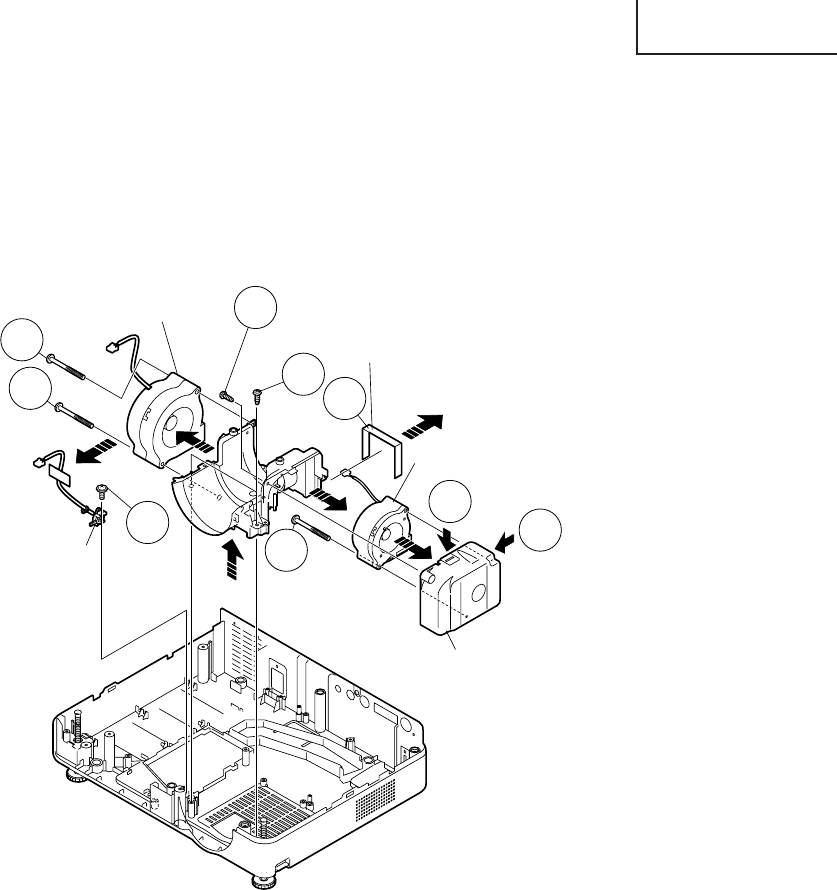

6.Removing the intake duct assembly

6-1. Remove the two screws and take out of the intake duct assembly.

6-2. Remove a screw and detach the leaf switch.

6-3. Remove a screw and two hooks. Detach the spacer B. Take out of the fan LCD R/G-intake duct B assembly.

6-4. Remove a screw and detach the fan LCD R/G.

6-5. Remove the two screws and detach the fan LCD B.

6-1

6-2

6-3

6-5

6-4

6-3

Intake Duct B

Fan LCD R/G

Leaf Switch

Fan LCD B

6-5

6-3

Spacer B
