PG-A20X

1716 1918151413121110

77

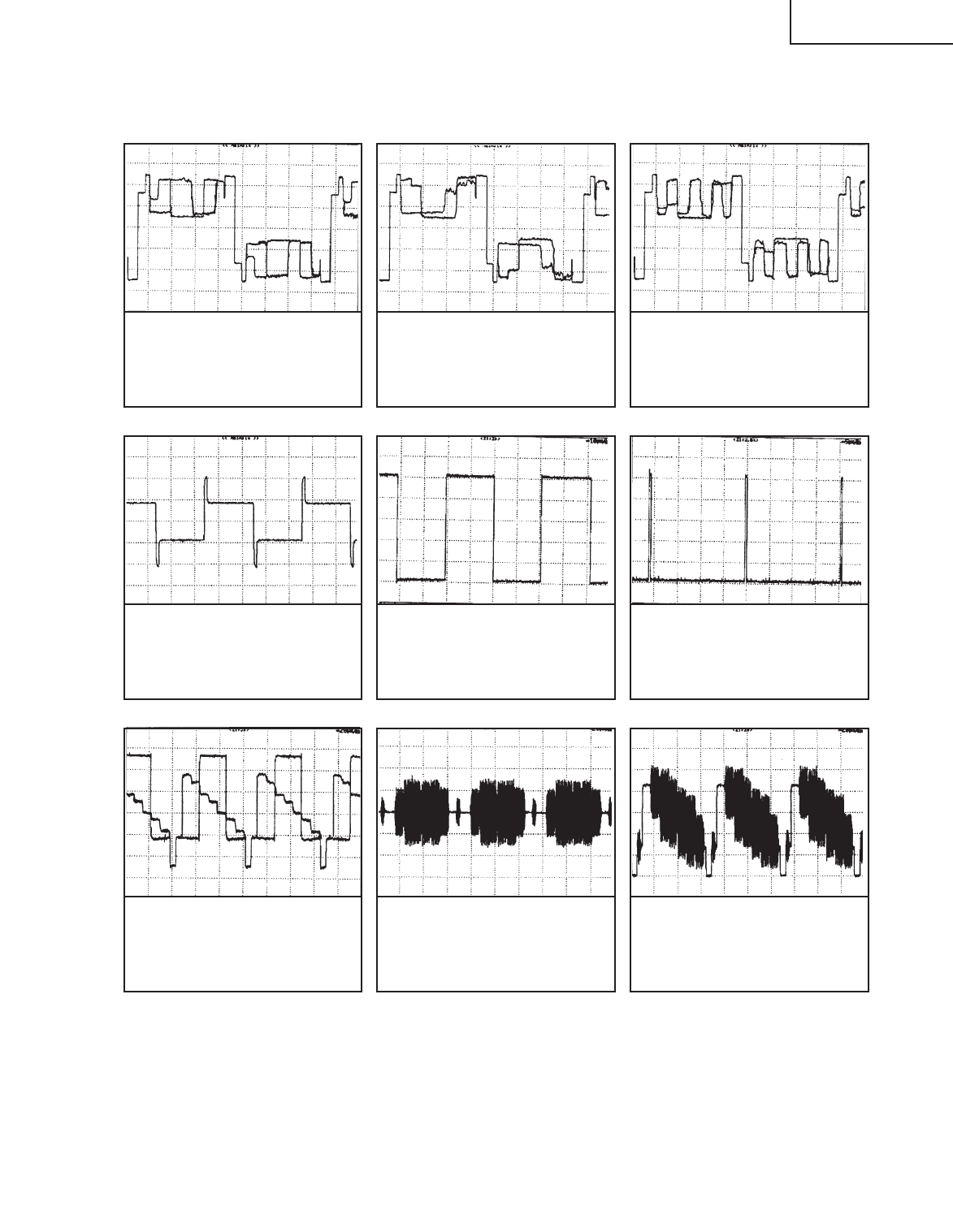

WAVEFORMS / WELLENFORMEN

1 RTP(P1301-1)

H:5µsec/div

V:2V/div

2 GTP(P1301-2)

H:F5µsec/div

V:2V/div

3 BTP(P1301-3)

H:5µsec/div

V:2V/div

4 P-SIG(TP1101)

H:10µsec/div

V:2V/div

5 VST(IC2604-12)

H:10µsec/div

V:1V/div

6 HST10(IC2604-17)

H:5µsec/div

V:1V/div

7 Y(IC3506-25)

H:20µsec/div

V:0.2V/div

8 C(IC3506-27)

H:20µsec/div

V:0.2V/div

9 Video(J402-2)

H:20µsec/div

V:0.2V/div
