50
SUPPLIES

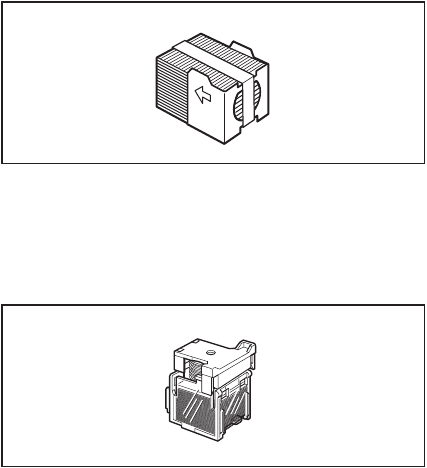

The finisher and saddle stitch finisher require the following staple cartridge:
• Staple cartridge (approx. 5000 staples x 3 cartridges) (for both the finisher and saddle stitch finisher)
AR-SC2
The saddle stitch finisher also requires the following special staple cartridge for the saddle stitch unit.
• Staple cartridge (approx. 2000 staples per cartridge x 3 cartridges)
AR-SC3
