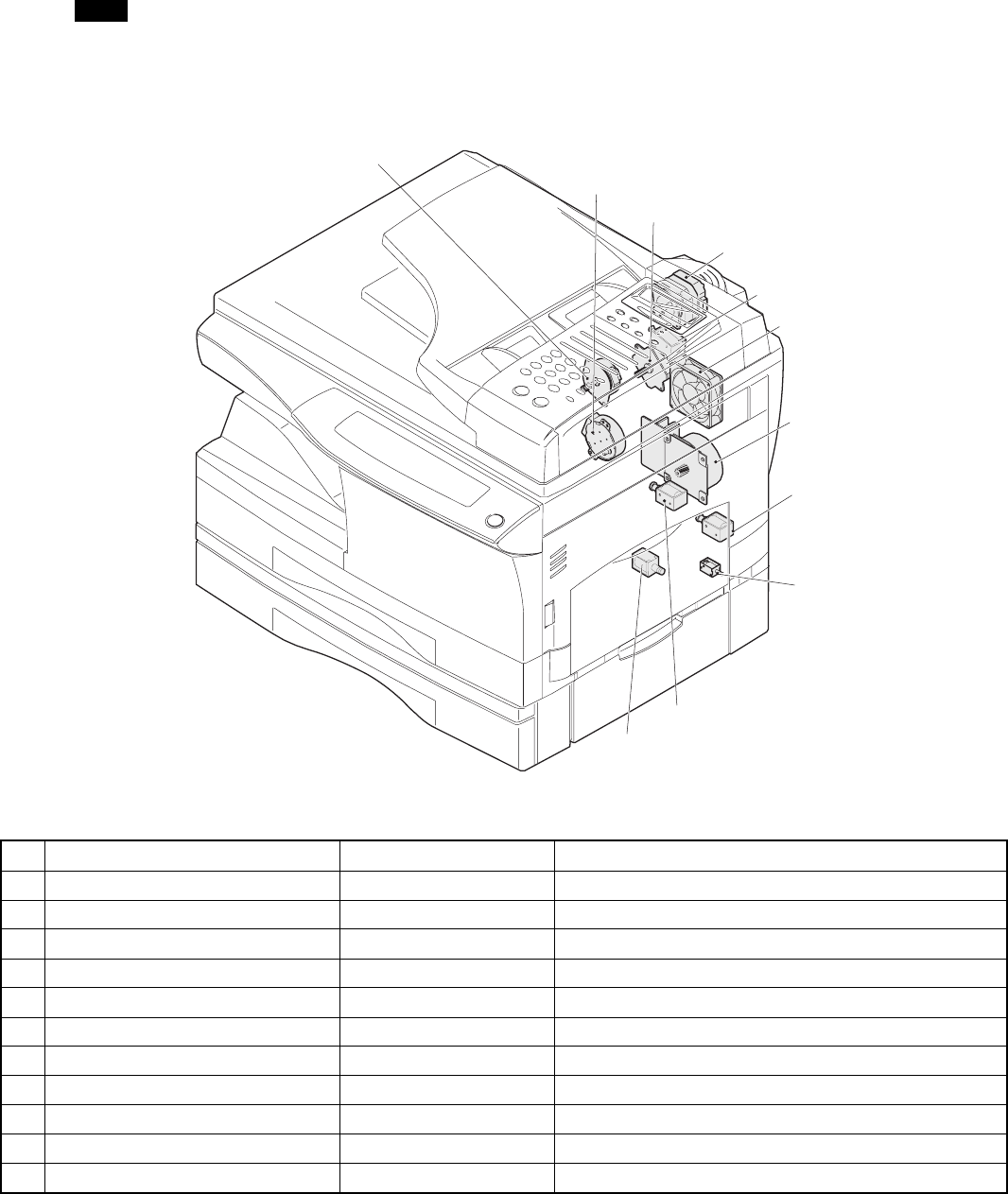

5. Motors and solenoids
No. Part name Control signal Function operation
1 Toner motor TM Supplies toner.
2 Mirror motor MRMT Drives the optical mirror base (scanner unit).
3 SPF motor SPMT Drives the single pass feeder
4 Original feed solenoid SPUS Original feed solenoid
5 Cooling fan motor VFM Cools the optical section.
6 Main motor MM Drives the copier.
7 Resist roller solenoid RRS Resist roller rotation control solenoid
8 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
9 Paper feed solenoid CPFS1 Cassette paper feed solenoid 1
10 Paper feed solenoid CPFS2 Cassette paper feed solenoid 2
11 Duplex Motor DMT Drivers the duplex paper transport section
1
11
2
3
5
4
6
7
8
9
10
