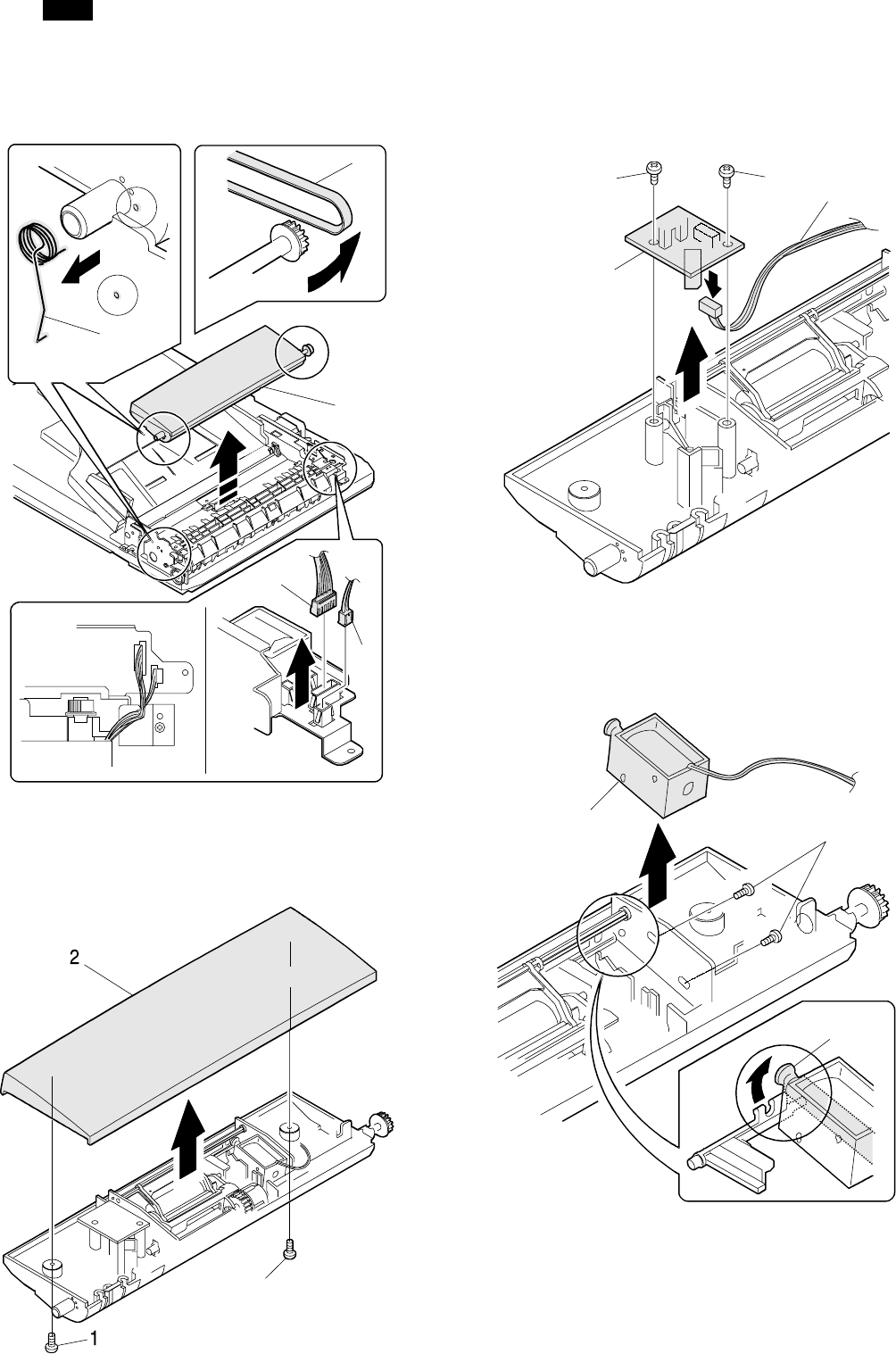

D. Pickup unit
1) Remove the belt, the paper feed frame spring, and two harnesses.
2) Remove the pickup unit.
NOTE: When reassembling, be careful of the hole position for the
paper feed frame spring.
E. Upper cover of the pickup unit.
1) Remove two screws from the bottom of the pickup unit.
2) Remove the upper cover.
F. Sensor PWB
1) Remove two screws.
2) Remove the sensor PWB.
3) Remove the harness.
G. Pickup solenoid
1) Remove two screws.
2) Remove the pickup solenoid.
NOTE: When reassembling, hang the iron core on the solenoid arm.
1
1
2
1
1
1
1
1
2
3
1
2
A
AR-F152
7 – 25
