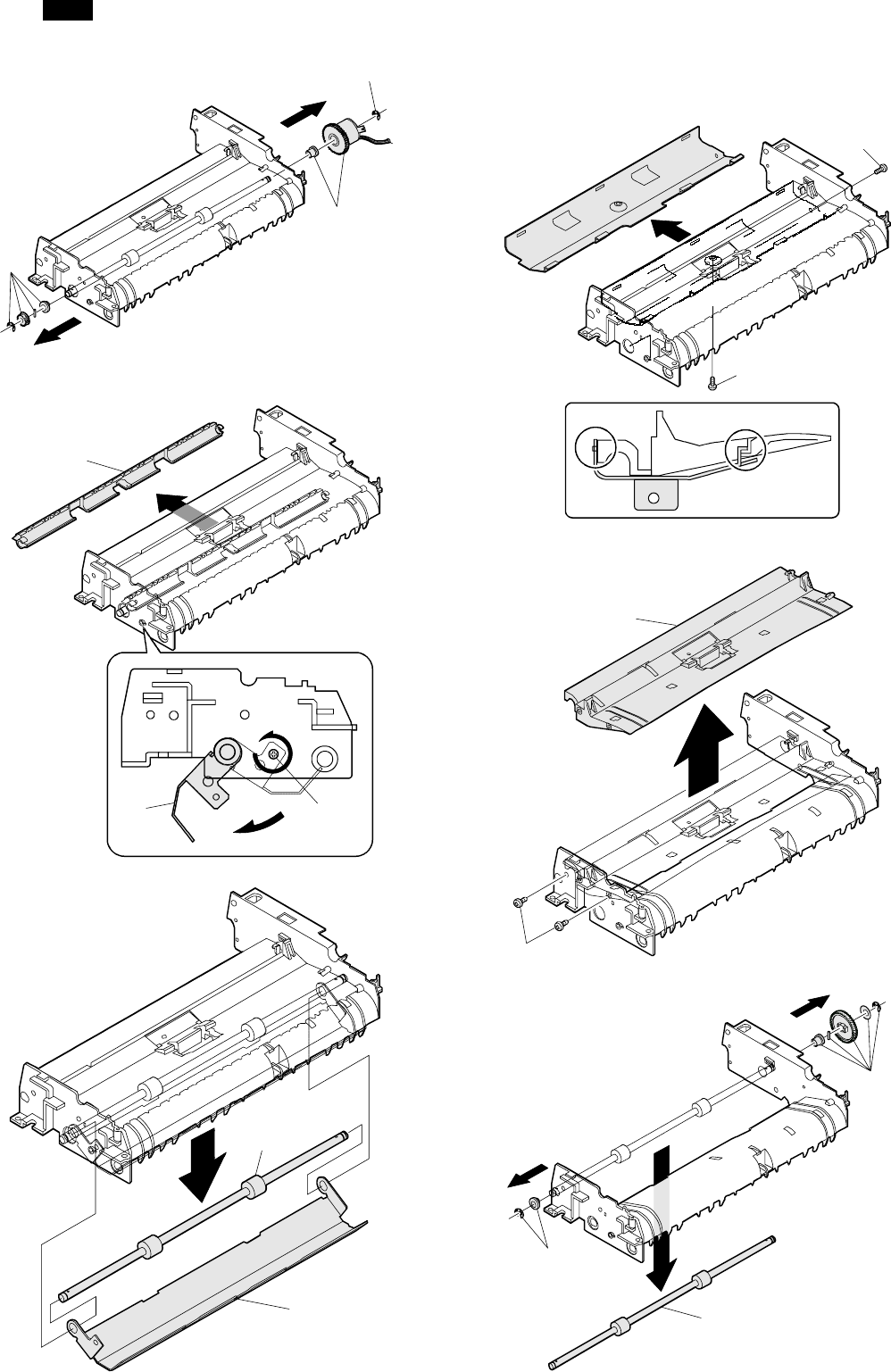

R. Transport roller1.
(1) Remove the parts.
1) Remove the parts.
(2) Remove the parts.
1) Loosen the screw.
2) Open the paper exit PG.
3) Remove the parts.
(3) Remove the transport roller.
1) Remove the paper exit PG.
2) Remove the transport roller.
S. Paper exit roller
(1) Remove the parts.
1) Remove two screws.
2) Remove the parts.
(2) Remove the paper feed PG upper.
1) Remove two screws.
2) Remove the paper feed PG upper.
(3) Remove the paper exit roller.
1) Remove the parts.
2) Remove the paper exit roller.
1
1
1
1
2
3
1
2
1
1
2
1
2
1
1
2
AR-F152
7 – 29
