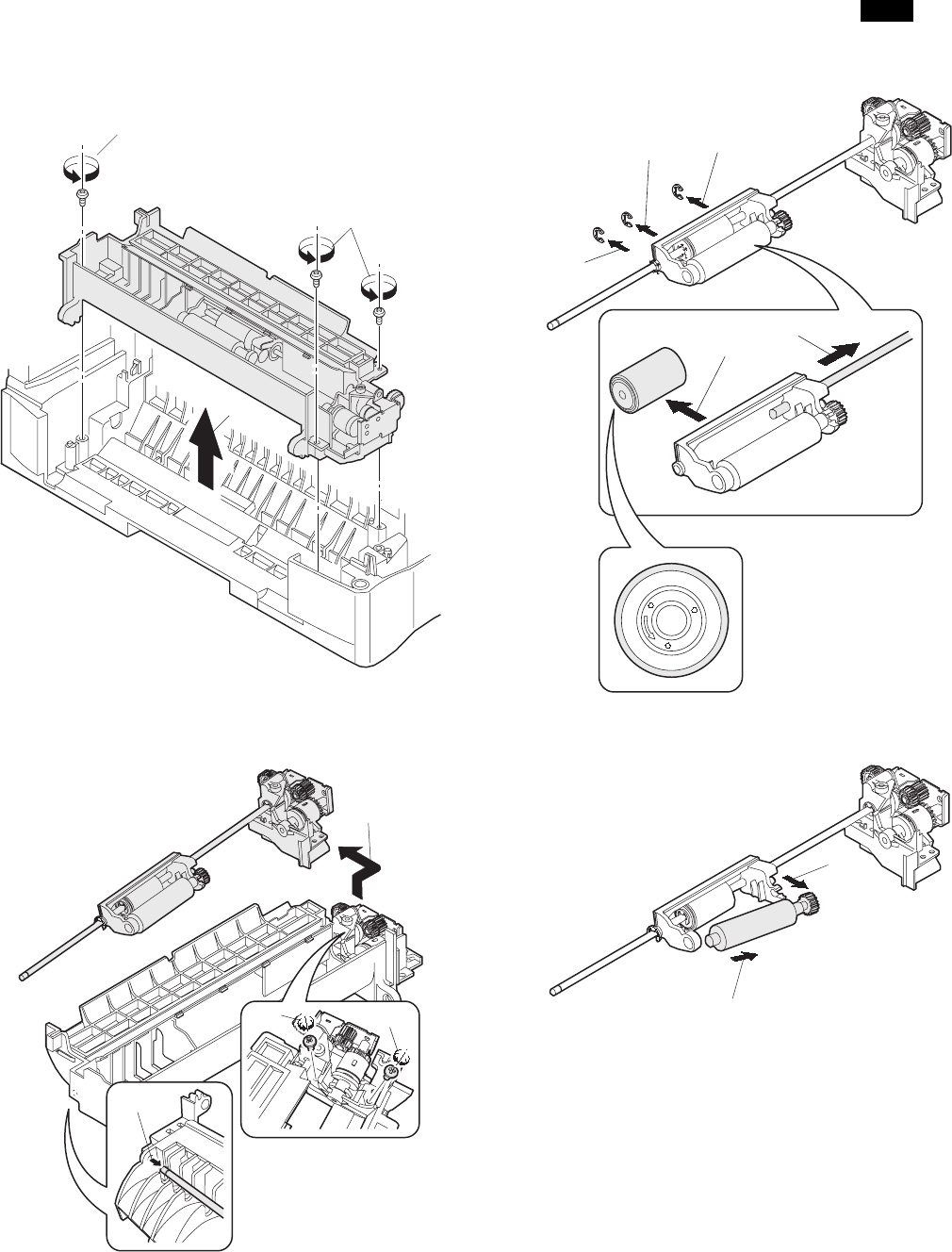

(3) Remove three screws and remove the multi paper feed upper

frame.

(4) Remove two screws and remove the multi feed bracket unit from

the multi paper feed upper frame.

(5) Remove three E-rings and remove the manual paper feed roller.

(6) Remove the pick-up roller.

1)

2)

1)

2)

2)

1)

1)

2)

1)

1)

1)

3)

L

O

C

K

T

O

K

2)

1)

AR-F152

7 – 16
