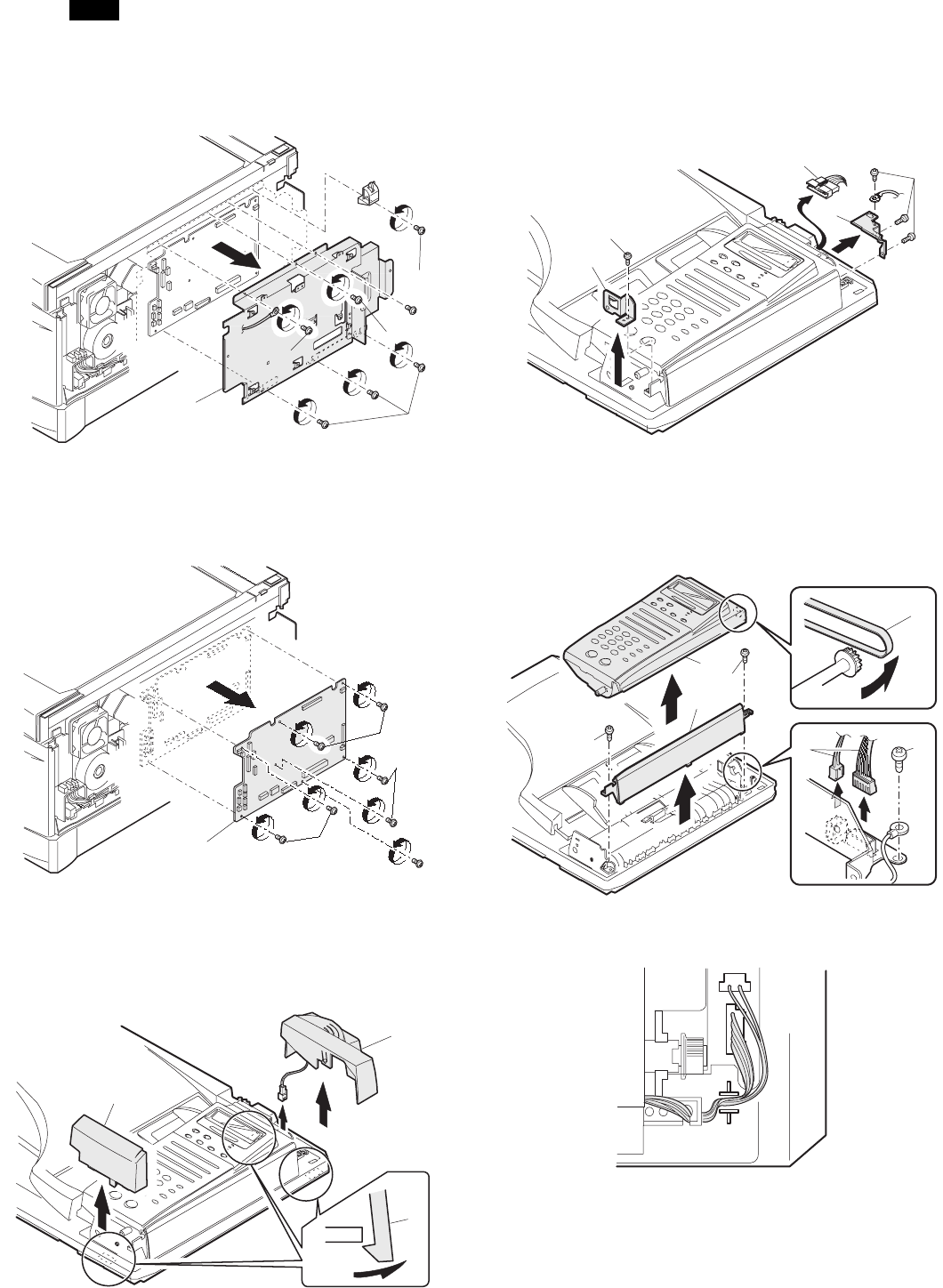

D. Remove the PWB cover FAX.

1) Remove six screws.

2) Remove the PWB cover FAX.

E. Remove the MCU PWB.

Disconnect the connectors.

1) Remove seven screws.

2) Remove the MCU PWB.

15. FAX-SPF section (AR-F152 only)

A. Remove the front and the rear covers.

1) Disengage three pawls.

2) Remove the front and the rear covers.

B. Remove the metal fixtures.

1) Disconnect the connector.

2) Remove four screws.

3) Remove the metal fixtures F and R.

C. Remove the FAX operation panel.

1) Remove the belt, the screw, and two connectors.

2) Remove the FAX operation panel.

3) Remove two screws.

4) Remove U-turn PG.

Wiring

AR-F152

7 – 31
