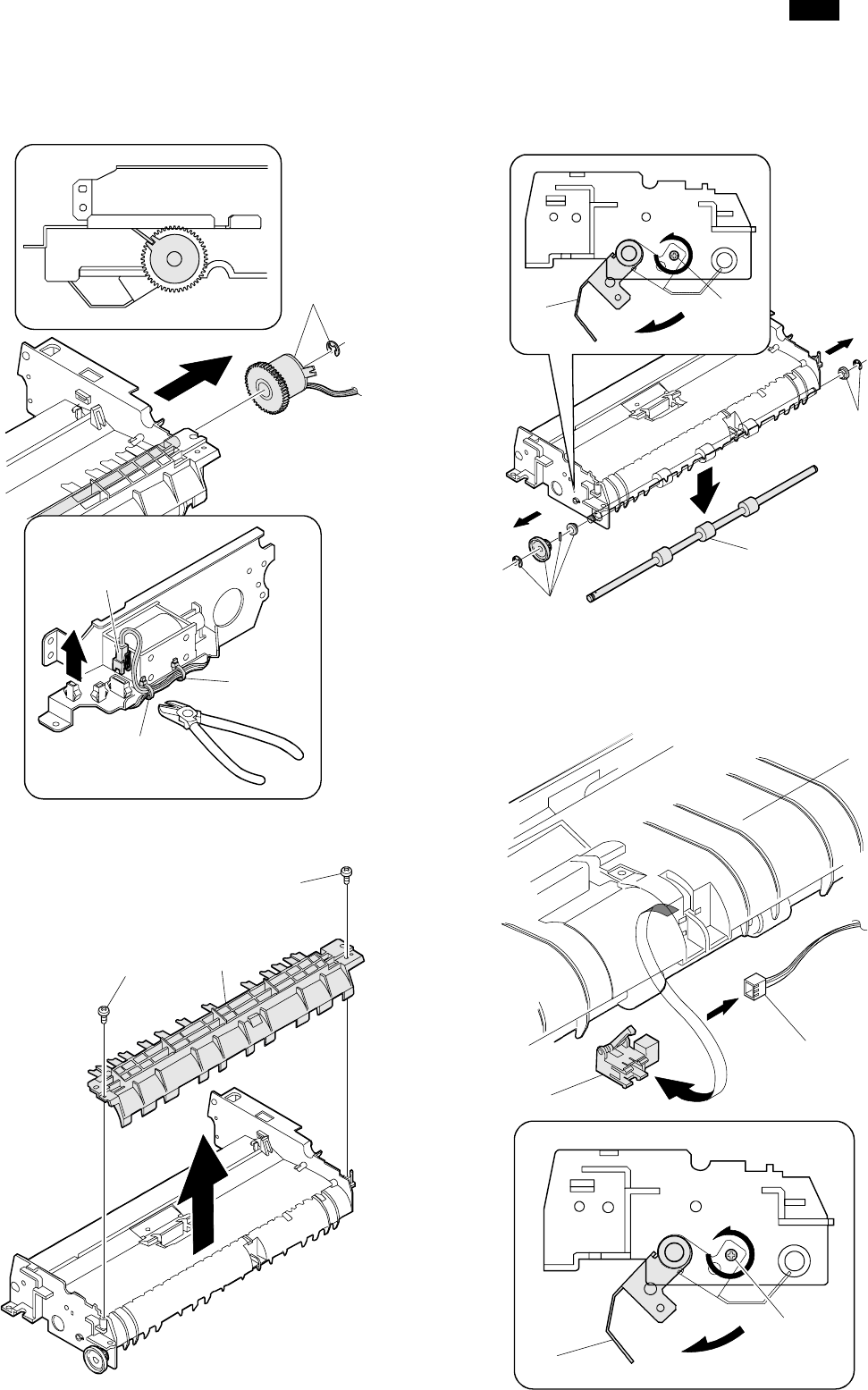

O. Clutch

1) Cut the band with nippers.

2) Remove the harness.

3) Remove the clutch.

P. PS roller

(1) Remove the parts.

1) Remove the two screws.

2) Remove the parts.

(2) Remove the PS roller.

1) Loosen the screw.

2) Open the paper exit PG.

3) Remove the parts.

4) Remove the PS roller.

Q. Paper entry sensor

1) Loosen the screw.

2) Open the paper exit PG.

3) Remove the paper entry sensor.

4) Remove the harness.

AR-F152

7 – 28
