11. Options and peripheral devices

11 - 20

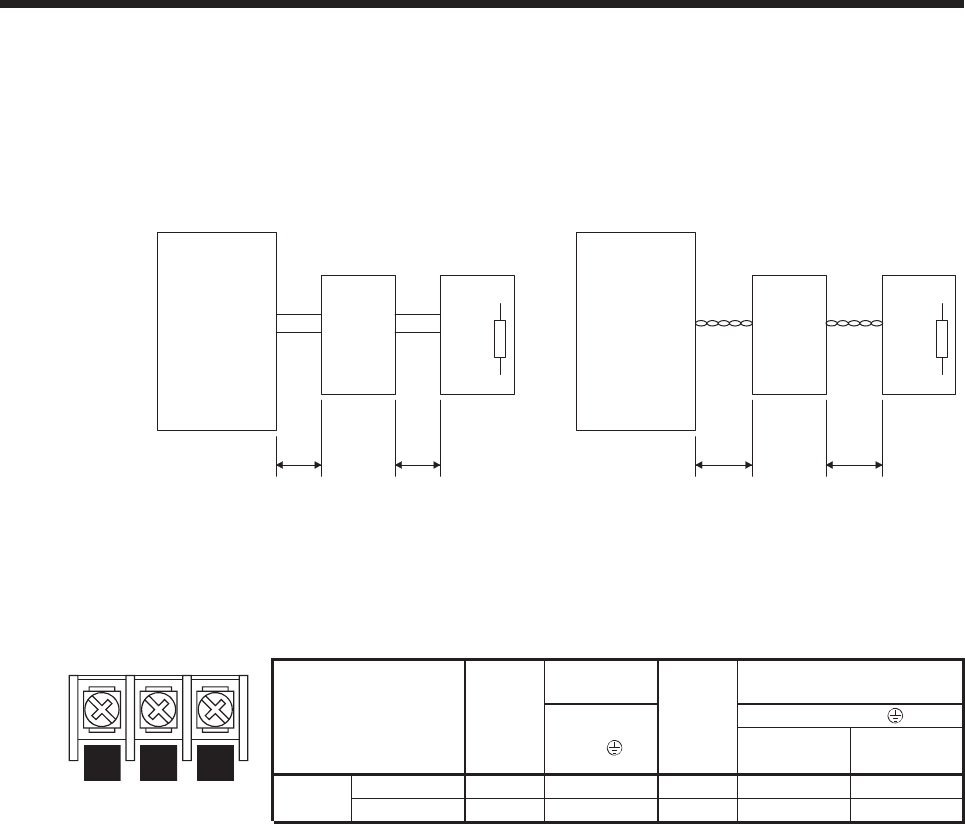

(2) Connection instructions

The cables between the servo amplifier and the brake unit, and between the resistor unit and the brake

unit should be as short as possible. Always twist the cable longer than 5 m (twist five times or more per

one meter). Even when the cable is twisted, the cable should be less than 10 m. Using cables longer

than 5 m without twisting or twisted cables longer than 10 m, may result in the brake unit malfunction.

Servo amplifie

Brake unit

5 m or less 5 m or less

Servo amplifie

Brake unit

10 m or less 10 m or less

P+

N-

P/+

N/-

P/+

N/-

Twist Twist

Resistor unit Resistor unit

P+

N-

(3) Cables

(a) Cables for the brake unit

For the brake unit, HIV cable (600 V grade heat-resistant PVC insulated wire) is recommended.

1) Main circuit terminal

Crimp

terminal

Wire size

N/-. P/+, PR,

Brake unit

Main

circuit

terminal

screw

size

N/-. P/+,

PR,

Tightening

torque

[N•m]

HIV wire

[mm

]

AWG

FR-BU2-15K M4 5.5-4 1.5 3.5 12

200 V

class

FR-BU2-30K M5 5.5-5 2.5 5.5 10

N/- P/+ PR

Terminal block
