4.13 Parallel port board / Serial port board / S-Video board 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-41
Installing the Parallel port board
The following describes the procedure for installing the Parallel port board (See Figure 4-27,
4-28).
1. Install the parallel port board on the base assembly.
2. Connect the USB harness to the connector CN4620 and the parallel port cable to
the connector CN3503 on the parallel port board.
3. Pass the DC-IN harness, USB harness and parallel port cable along the guide of
base assembly.

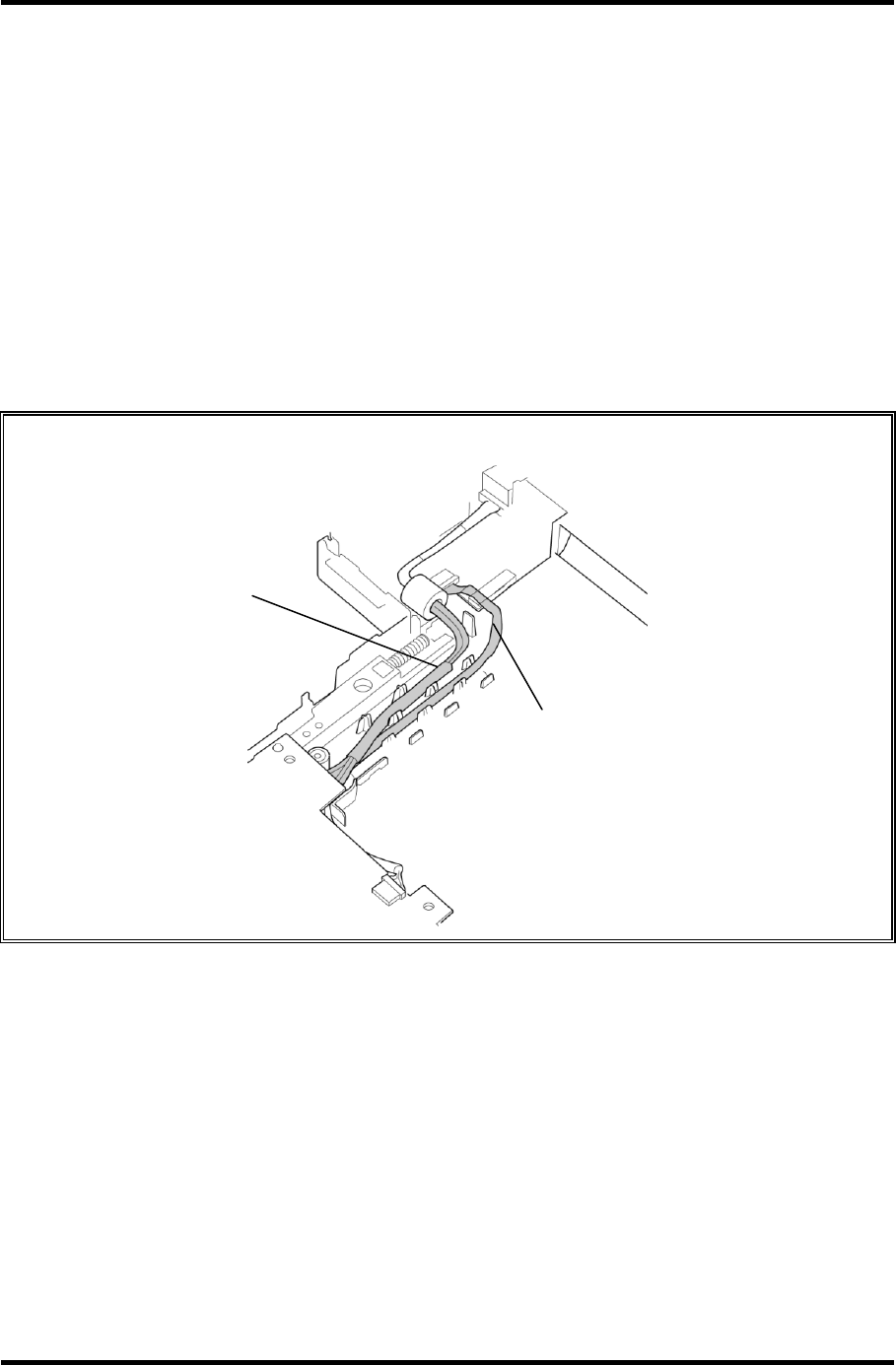

CAUTION:Pass the cables under harness holder as the following figure.
4. Install the harness holder and secure it with the following screws.
? M2.5x4B THIN BIND screw x2
5. Set the core of the DC-IN harness on the harness holder and install the DC-IN jack
in the slot of the base assembly.
USB harness
DC
-
IN harness
