4.18 Battery Lock 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-53
4.18 Battery Lock
Removing the Battery lock
The following describes the procedure for removing the battery lock (See Figure 4-34, 4-35).
1. While pressing projections of the battery lock button inside each other, push the
button to the bottom of the base assembly to remove.

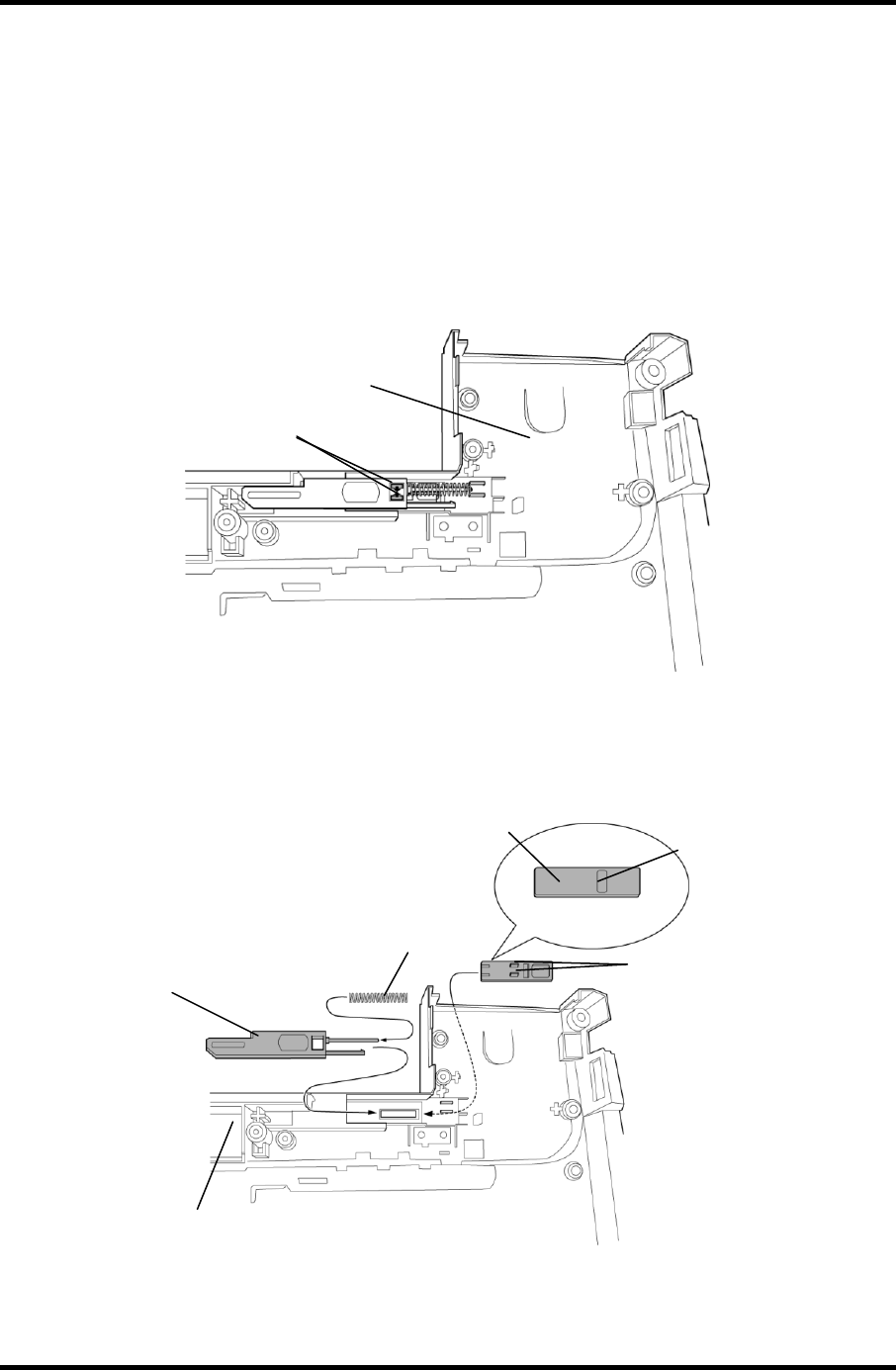

Figure 4-37 Removing Battery Lock Button
2. Remove the battery lock R from the base assembly and remove the spring from the
battery lock R.
Figure 4-38 Removing Battery Lock R
Base Assembly
Project
ion of the battery lock button
Base Assembly
Projection
(Back view)
Battery Lock Button
Battery Lock R
Spring
Mark
