4 Replacement Procedures 4.20 LCD Unit/FL Inverter
4-58 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
3. Remove the following screw fixing the FL inverter.
? M2x4Z SUPER THIN BIND screw x1
4. Peel off the insulators in the HV cable side and disconnect two cables from the FL
inverter. Remove the FL inverter.
5. Remove the following screws fixing the LCD unit.
? M2x4Z SUPER THIN BIND screw x4
6. With the bottom edge of the LCD unit resting on the display cover, raise the top edge
of the LCD unit. Peel off the cupper tape and disconnect the LCD harness from the
connector on the back of the LCD.
7. Remove the LCD unit from the display cover.

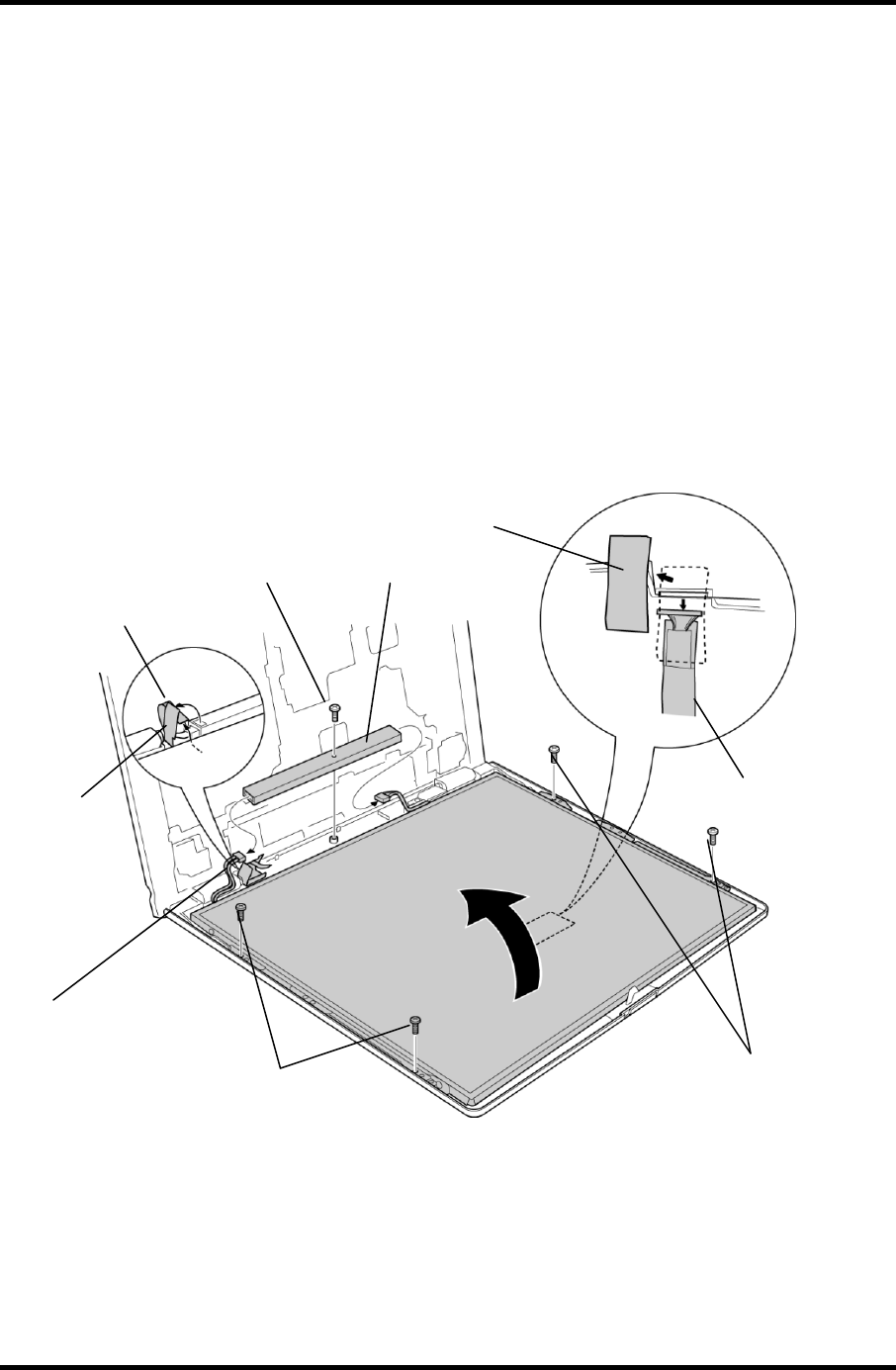

Figure 4-41 Removing FL Inverter and LCD Unit
M2x4Z SUPER THIN BIND
LCD harness
Cupper Tape
FL Inverter
HV cable
M2x4Z SUPER THIN BIND
Insulator1
M2x4Z SUPER THIN BIND
Insulator2
