4.22 Wireless LAN Antenna/Speaker/Hinge 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-67
9. Remove the following screws securing the hinges to the display assembly.
? M2.5x4B THIN BIND screw x3 (Right:1, Left: 2)
10. Peel off the accetate tapes securing the speaker cables and take out the cable under
the insulator.

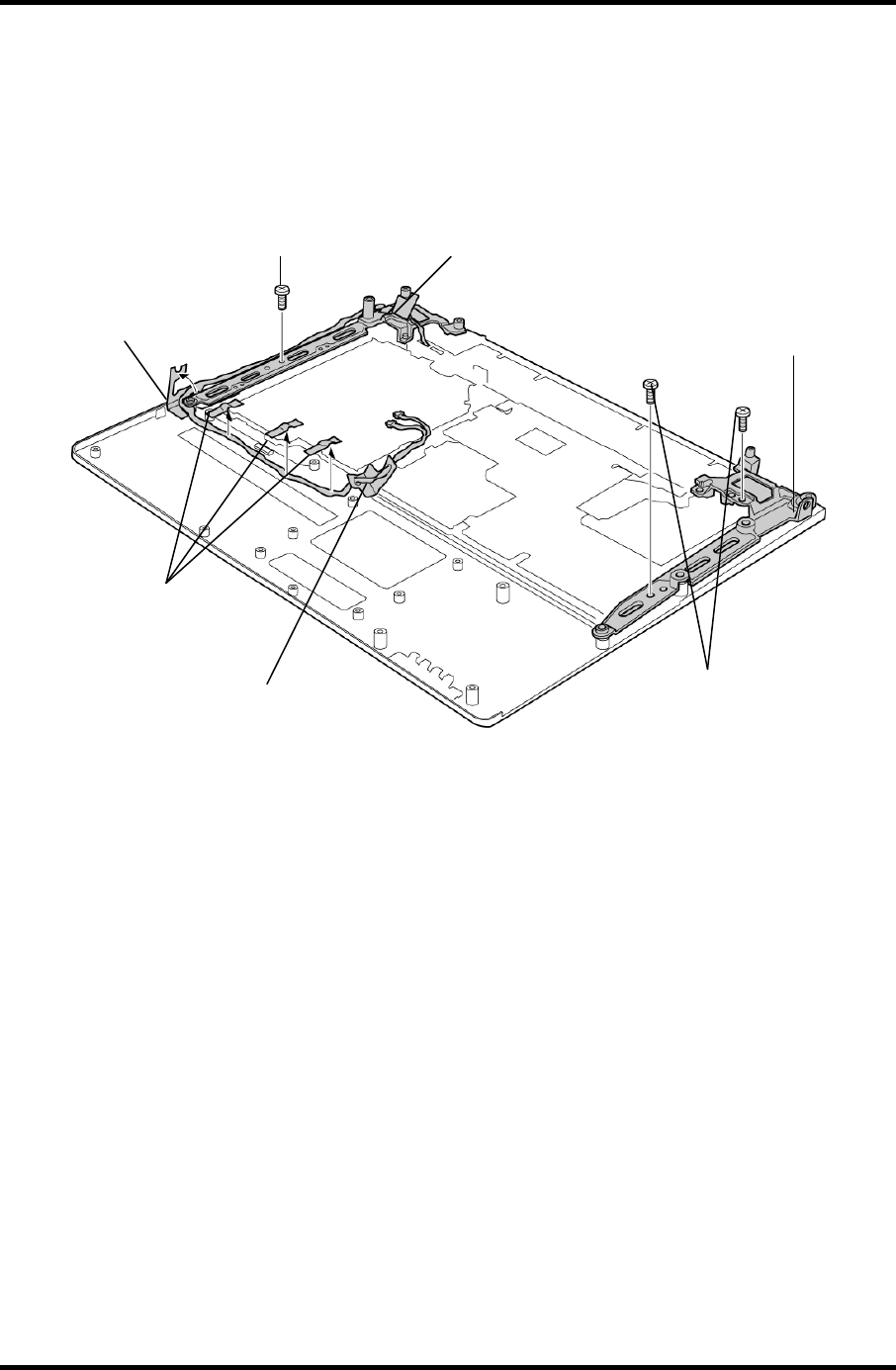

Figure 4-49 Removing speaker cables
Accetate Tape
M2.5x4B
THIN BIND
M2.5x4B
THIN BIND
Hinge
Insulator
Speaker cable
Hinge
