4.22 Wireless LAN Antenna/Speaker/Hinge 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-65
5. Remove the following screws securing the hinge caps and remove the hinge caps.
? M2.5x6B THIN BIND screw x2
6. Remove the LCD harness.
7. Remove the wireless LAN antenna cables.

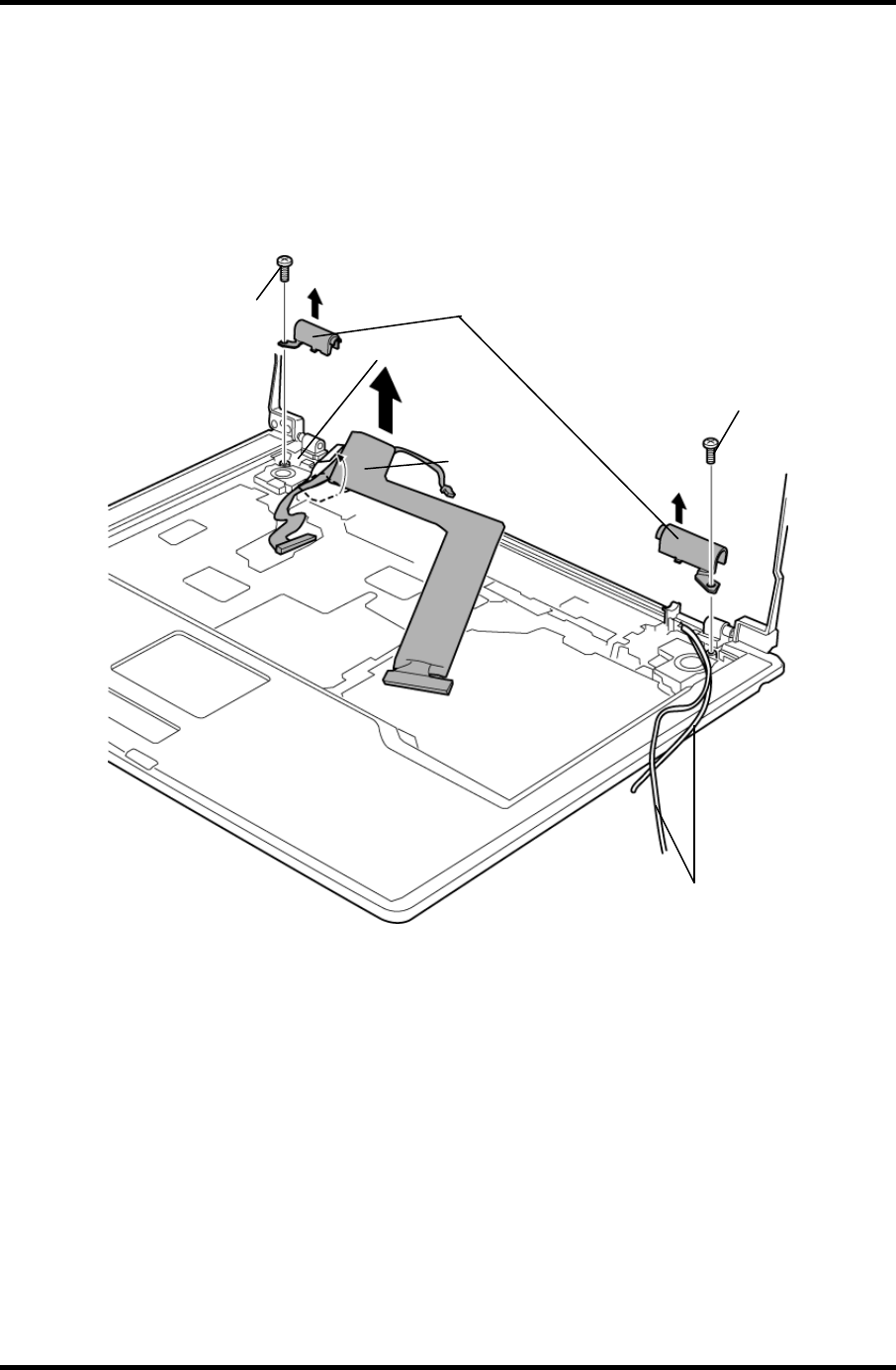

Figure 4-47 Removing Hinge Cap
M2.5x6B
THIN BIND
Hinge Cap
M2.5x6B
THIN BIND
Insulator
LCD harness
Wireless
LAN Antenna Cable
