4.23 Fluorescent Lamp 4 Replacement Procedures
Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-91
3. Install the lamp cover (J) on the backlight unit and secure it with the two screws (D).

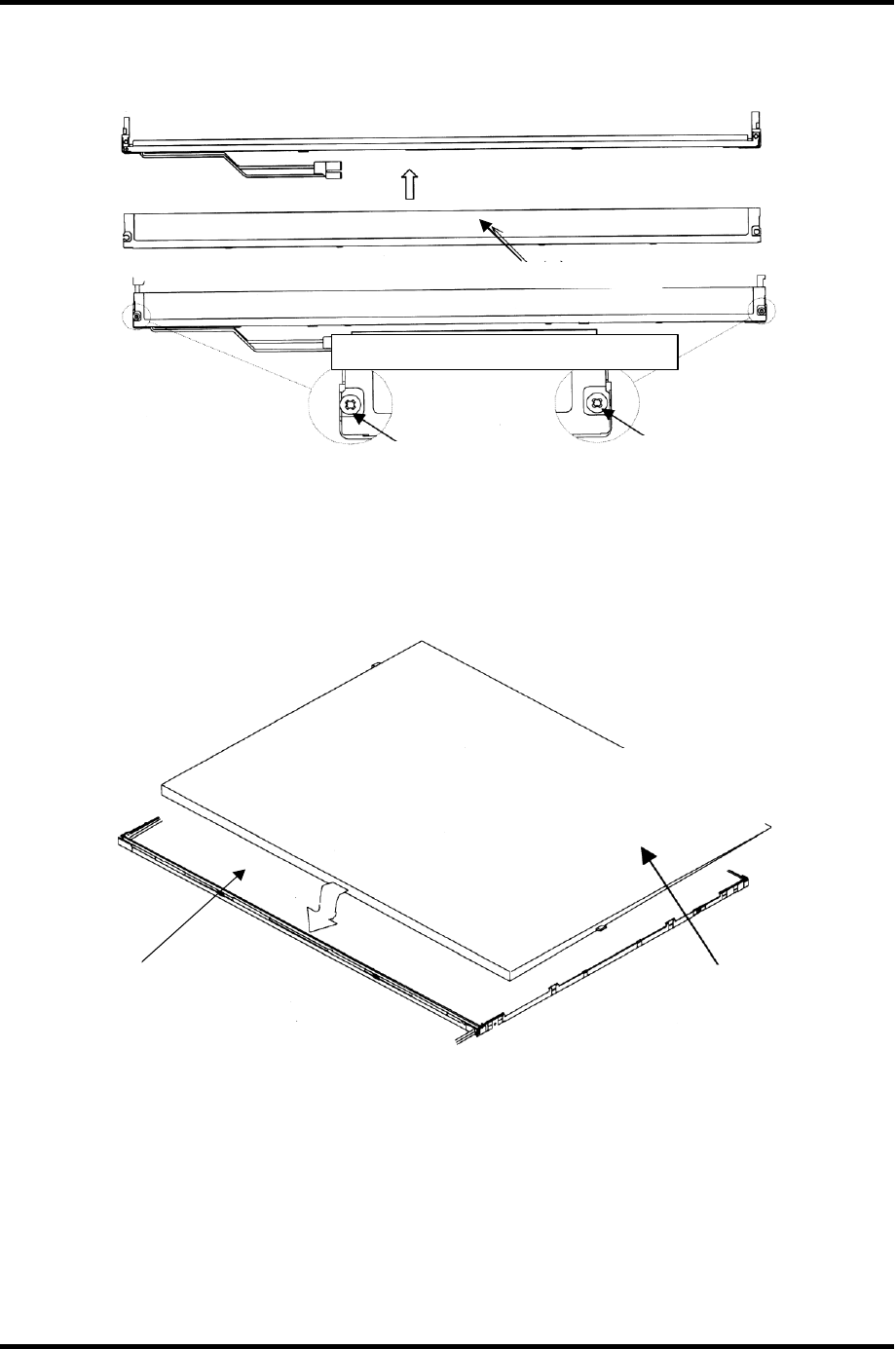

Figure 4-75 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (14)
4. Install the light guide (M) on the backlight unit.
Figure 4-76 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (15)
(J) Lamp cover
(D) Screw
(D) Screw
Screw tightening torque: 1.0kg?cm
Backlight unit
Insert the light guide straight not
to deform the reflector.
(M) Light guide
