4.23 Fluorescent Lamp 4 Replacement Procedures

Satellite A50S/TECRA A3X Maintenance Manual (960-534) [CONFIDENTIAL] 4-95

8. Install the bezel (E) on the lamp cover and hook the four latches on the lamp cover and

two latches on the P-chassis.

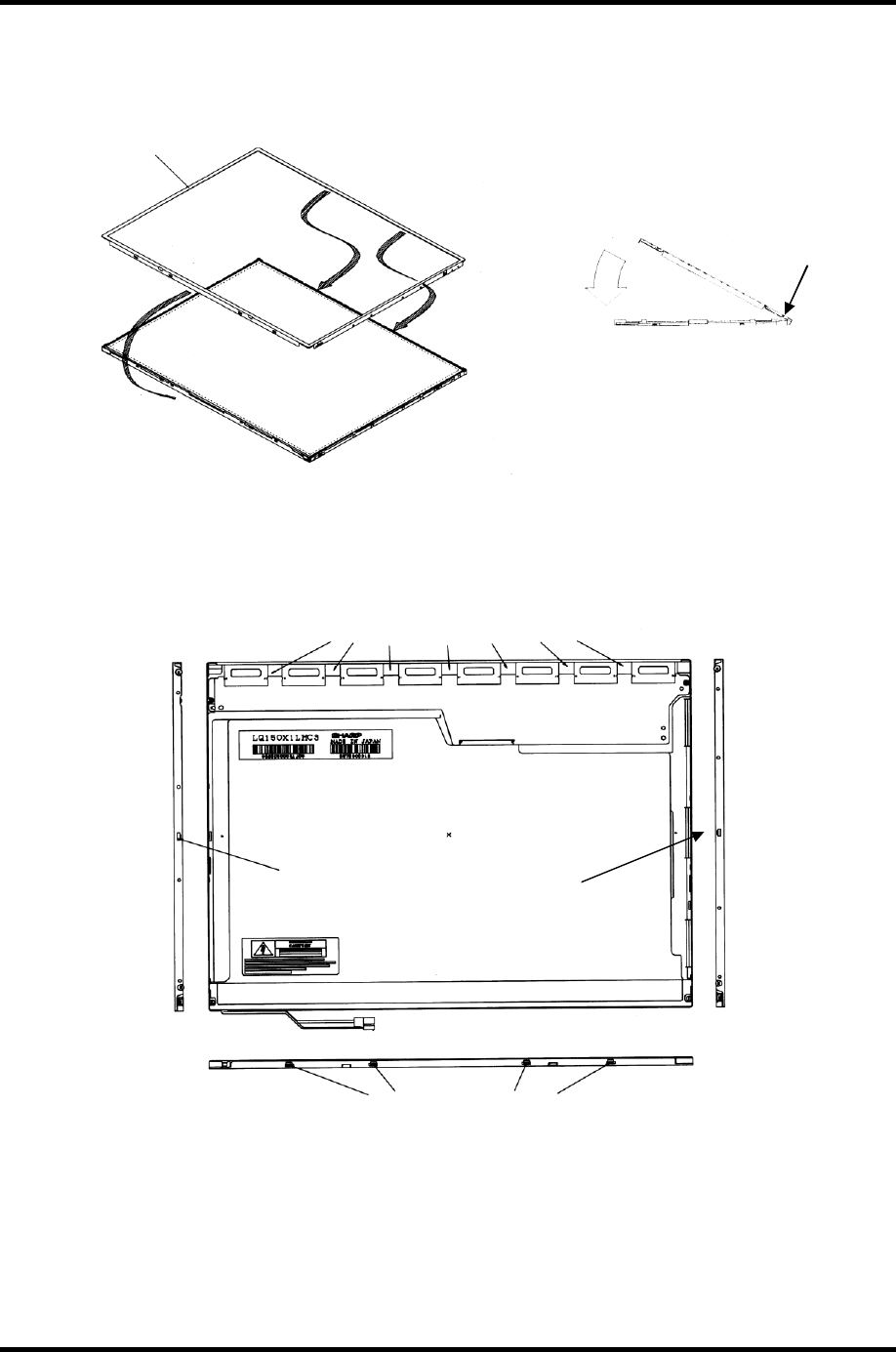

Figure 4-81 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (20)

Figure 4-82 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (21)

(E) Bezel

(1) Hitch

the

hook of

the

bezel

on the rib of the P-chassis.

Hook

(2) Lean

the

bezel on

the

lamp cover without

interference with the TCP.

Make sure of mating of

the

bezel and

the

rib of

the

chassis.

Make sure of mating

the

bezel and

the

latch of the P-chassis.

Make

sure of mating of

the

bezel

and the latch of the P-chassis.
